The hydraulic push rig sits on the back of a flatbed truck, its cone rod ready to penetrate the Piedmont residuum that defines much of Birmingham Alabama's subsurface. Our team lowers the electronic cone at a steady 20 mm/s, recording tip resistance and sleeve friction every 2 cm. The data streams live to a laptop inside the cab. This isn't the old SPT hammer-and-split-spoon routine. We get a continuous profile of soil behavior type, from stiff clays to saprolite, without stopping for sampling. In Birmingham Alabama, where residual soils grade unpredictably into weathered rock, that continuous trace is what saves you from overdesigning deep foundations or, worse, underestimating bearing capacity. Before we mobilize, we cross-reference records from the Alabama Geological Survey to anticipate shallow boulders that could deflect the cone. The whole setup takes about 90 minutes on site, and we typically push to 20 meters unless refusal occurs sooner in the competent phyllite.
A single CPT sounding in Birmingham Alabama's Piedmont residuum provides more continuous stratigraphic data than ten SPT borings at the same site.
Methodology and scope
Birmingham Alabama sits at roughly 600 feet above sea level, straddling the boundary between the Appalachian Ridge and Valley and the Piedmont Plateau. That transition means our CPT soundings often encounter alternating layers of residual clay, weathered schist, and hardpan. A typical push here yields measured parameters: cone tip resistance (qc) ranging from 2 MPa in soft clay to over 20 MPa in dense saprolite, sleeve friction (fs) between 40 kPa and 250 kPa, and pore pressure (u2) that spikes in the saturated zones near Village Creek. We process the data through routines based on Robertson's 1990 soil behavior type chart, which works well for the region's unsaturated soils. When we hit a layer of cemented ironstone — common in the Red Mountain formation — we stop pushing and switch to a pre-bored hole with a rotary tool to advance past the obstruction. The electronic cone also records temperature and tilt, so we know if the rod is bending in the variably weathered horizons. Each sounding gives us a stratigraphic column that a dozen SPT borings would struggle to match in resolution.

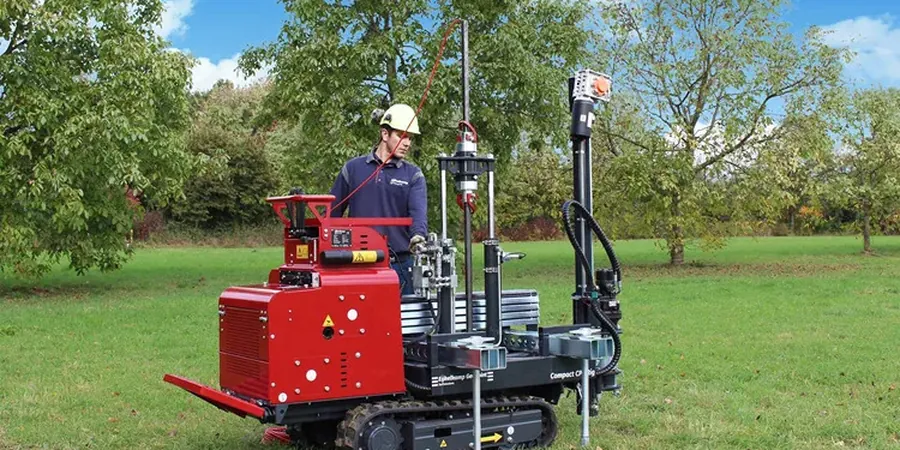

Technical reference image — Birmingham Alabama
Local considerations
A 10-story medical office building near UAB Hospital went ahead with shallow footings based on a few SPT borings that showed stiff clay at 3 meters. The contractor started excavation and hit a 2-meter-thick lens of soft clay that the SPT had missed entirely. The cone would have caught that lens in the first 20 cm of penetration. We brought our CPT rig in after the fact and mapped the soft zone in two hours. The foundation had to be redesigned to deep piles, adding six weeks and $180,000 to the project. A single CPT sounding before excavation would have cost less than $2,000 and shown the lens in the continuous qc trace. In Birmingham Alabama, where residual soil profiles change over a few meters due to differential weathering, skipping the CPT is a gamble with real money.
Our base configuration measures tip resistance and sleeve friction at 2 cm intervals. It works for 90% of commercial projects in Birmingham Alabama, from parking decks to mid-rise buildings. We provide a soil behavior type profile and estimated bearing capacity for shallow foundations.
02
Piezocone (u2 measurement)
We add a porous filter element behind the cone to record pore pressure during penetration. This is critical for sites near the Black Warrior River or in the Cahaba Valley where groundwater sits within 3 meters of the surface. The u2 data helps evaluate drainage conditions and consolidation behavior.
03
Seismic cone (SCPTu)
We incorporate a geophone array in the push rods to measure shear wave velocity (Vs) at 1-meter intervals. The Vs profile feeds directly into ASCE 7 site class determination and liquefaction triggering analysis. We often run this in downtown Birmingham Alabama where older fill over soft alluvium requires careful seismic design.
Applicable standards
ASTM D5778-20: Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils, ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings (site class determination via CPT), IBC 2021: Chapter 18 – Soils and Foundations (accepts CPT for bearing capacity and settlement analysis)
Frequently asked questions
How deep can the CPT cone penetrate in Birmingham Alabama's residual soils?
Typical refusal occurs between 12 and 20 meters in the Piedmont residuum. We have pushed to 25 meters in the Valley and Ridge province where weathered limestone produces softer profiles. The limiting factor is usually a cemented ironstone layer or a boulder in the colluvium. If we hit refusal before target depth, we pre-drill with a rotary tool and re-push.
What is the difference between CPT and SPT for foundation design in Birmingham Alabama?
CPT gives a continuous profile of tip resistance and sleeve friction every 2 cm, while SPT provides discrete blow counts every 60 cm. For Birmingham Alabama's variable residual soils, the CPT catches thin soft layers and hard lenses that SPT borings routinely miss. The CPT also records pore pressure data, which is essential for settlement analysis in the saturated clays along the Valley Creek floodplain.
How much does a CPT sounding typically cost in Birmingham Alabama?
A standard electric cone sounding to 15 meters runs between $190 and $270 per test point, including mobilization within Jefferson County. The price increases if we need seismic sensors (SCPTu) or if the site requires pre-drilling through pavement or debris. Volume discounts apply for campaigns of five or more soundings.
Do you provide bearing capacity and settlement estimates from CPT data?
Yes. We process the CPT data using methods from Robertson (2009) and Mayne (2007) to estimate undrained shear strength for clays, friction angle for sands, and constrained modulus for settlement analysis. For projects in Birmingham Alabama, we cross-check our CPT-based estimates against local experience with Piedmont soils and provide a written geotechnical interpretation report suitable for structural engineers.
