In Birmingham Alabama, we frequently encounter expansive clay soils that demand careful foundation engineering. A raft/mat foundation spreads the structural load across a large area, reducing differential settlement risk. Before finalizing the design, we typically run a geotechnical site investigation to assess soil bearing capacity and stratigraphy. This is especially important in areas where the soil profile includes layers of shale or residual clays. Our team integrates these findings with structural loads to produce a mat that performs under both static and cyclic conditions. The approach is straightforward: understand the ground, then design the slab.
A properly designed mat foundation in high-plasticity clay can reduce differential settlement by over 50% compared to isolated footings.
Methodology and scope
Birmingham’s seasonal rainfall and high plasticity clays present unique challenges for raft foundations. The soil can shrink and swell significantly, so we incorporate moisture control measures into the design. We also evaluate the site response to seismic shaking using site-specific shear wave velocities, which helps us define the design ground motion per ASCE 7. In many projects, we combine the raft with a deep soil mixing program to stabilize weak zones beneath the mat. This hybrid solution reduces total and differential settlement while keeping excavation depths manageable. Each design is calibrated to the actual soil parameters measured in our laboratory tests.

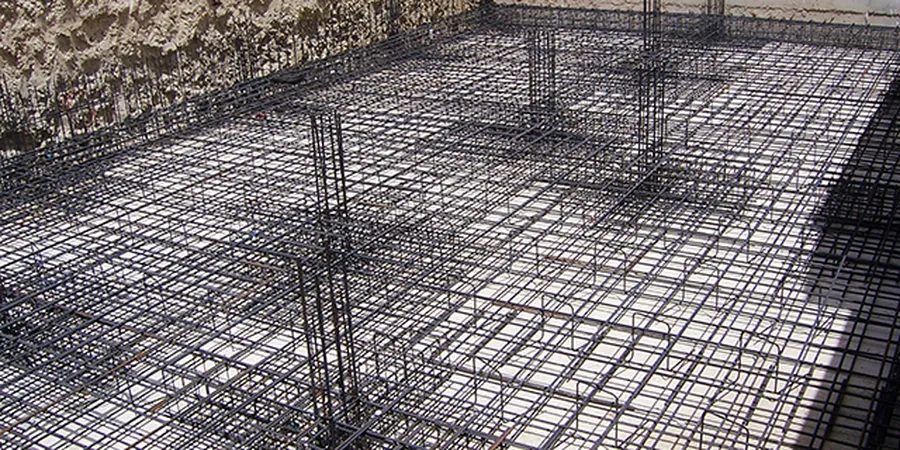

Technical reference image — Birmingham Alabama
Local considerations
Ignoring the swelling potential of Birmingham’s clay soils is a common mistake. When a mat foundation is designed without adequate moisture barriers or drainage, seasonal volume changes can crack the slab and damage the superstructure. We’ve seen this happen on commercial projects where the raft was undersized for the actual soil profile. Our approach includes a moisture mitigation plan and a stiffened edge detail that resists curling. We also verify the soil’s plasticity index and shrinkage limits before finalizing the reinforcement layout. The cost of fixing a cracked mat far exceeds the upfront effort to get the design right.
Boreholes, SPT, laboratory testing (consolidation, triaxial, Atterberg limits), and site-specific bearing capacity analysis. We deliver a detailed report with recommended mat dimensions and reinforcement requirements.
02
Mat Foundation Structural Design & Review
Finite element modeling of the raft under combined loading, including seismic and wind loads. We produce shop-ready drawings and coordinate with the structural engineer of record for smooth integration.
Applicable standards
IBC 2021 (Chapter 18 – Soils and Foundations), ASCE 7-22 (Seismic Load Provisions), ASTM D1586-18 (Standard Test for SPT), ACI 318-19 (Building Code Requirements for Structural Concrete)
Frequently asked questions
What is the typical cost range for a raft/mat foundation design in Birmingham Alabama?
The cost for a complete raft design package in Birmingham Alabama typically ranges between US$1.160 and US$4.680, depending on site complexity and the number of borings required. This includes field investigation, lab testing, and final structural drawings.
How deep does the soil investigation need to be for a mat foundation?
We usually drill at least one boring to a depth of 1.5 to 2 times the mat width, or until we encounter competent bearing stratum. In Birmingham’s clay profiles, that often means reaching 30 to 50 feet below grade.
Can a raft foundation handle expansive clay soils?
Yes, but the design must account for moisture changes. We add a granular capillary break, a vapor barrier, and sometimes a stiffened edge beam. Without these, the mat can experience differential heave that leads to cracking.
What is the difference between a mat foundation and a slab-on-grade?
A mat foundation is a thick reinforced concrete slab designed to support concentrated column or wall loads. A slab-on-grade is thinner and only supports floor loads. Mats are used when soil bearing capacity is low or loads are heavy.
Do I need a seismic analysis for a mat foundation in Birmingham?
Yes, Birmingham is in a moderate seismic zone (ASCE 7 seismic design category B to C). We perform a site-specific response analysis using shear wave velocity data to determine the correct base shear and ensure the mat can resist lateral loads.
