The steel geogrids and woven polyester straps used for MSE wall design in Birmingham, Alabama arrive on site in rolls over six feet wide, requiring careful staging on the often tight urban lots near downtown. The team unrolls them directly onto the compacted backfill, tensioning each layer by hand before the next lift of select granular material is placed. We see this process most frequently on the I-20/59 corridor widening projects and new commercial pads in the Cahaba Valley area, where the local claystone bedrock sits shallow enough to provide a competent foundation for the reinforced zone. Before specifying the reinforcement layout, we always run a full index property suite on the proposed backfill to confirm it meets AASHTO M 288 gradation bands for drainage and internal friction angle.
The whole system behaves as a gravity mass, so understanding the unit weight of the reinforced fill is critical.
Methodology and scope
On a recent retaining structure for a 14-story apartment complex near Railroad Park, the design team specified a two-tiered MSE wall system to handle a 38-foot grade change across the property. The lower tier required geogrid lengths equal to 70% of the wall height, a common ratio here given the residual soils that dominate Birmingham Alabama's eastern slopes. Each lift of backfill is compacted to 95% Standard Proctor density, and the facing panels are aligned using a laser level before the next row of connectors is bolted on. The whole system behaves as a gravity mass, so understanding the unit weight of the reinforced fill is critical; we measure it directly from bulk samples using ASTM D1557. For sites with marginal on-site soils, we recommend importing a clean crushed stone fill and pairing the wall with a geotextile separator to prevent pumping during wet weather.

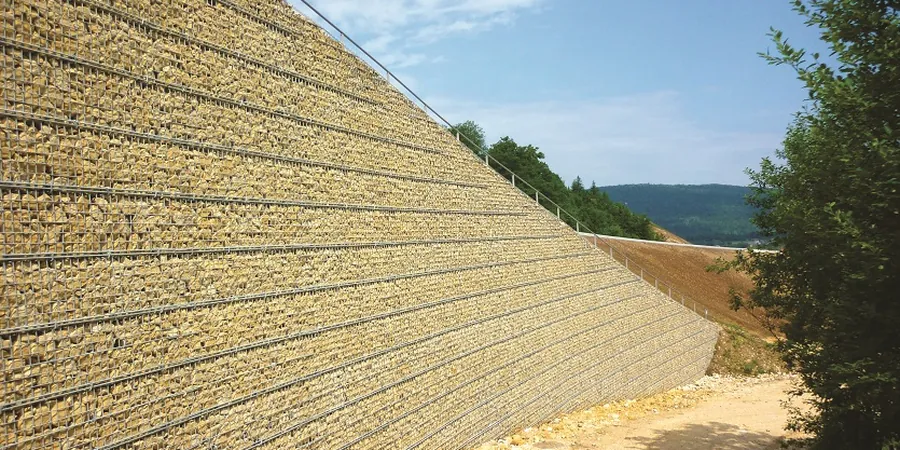

Technical reference image — Birmingham Alabama
Local considerations
Birmingham Alabama grew rapidly in the post-war era, with many retaining walls built on the steep slopes of Red Mountain and Shades Valley using un-reinforced gravity sections that have since developed bulging faces and tension cracks. The underlying residual clay derived from weathered limestone and shale is highly plastic, with liquid limits often exceeding 50%, and it shrinks and swells seasonally. When that clay is used as backfill without proper drainage and reinforcement, lateral earth pressures can exceed design values by a factor of two. Modern MSE wall design here must account for that expansive behavior by specifying a low-plasticity granular backfill, installing a perforated collector pipe behind the wall, and, where seepage is persistent, adding a drainage geocomposite directly against the reinforced zone.
We assess the on-site and imported backfill materials through a full suite of laboratory tests: grain-size distribution, Atterberg limits, Standard Proctor compaction, and direct shear on the soil-geogrid interface. The results feed directly into the internal stability calculations.
02
External Stability Analysis & Foundation Verification
Using the bearing capacity, sliding, and overturning checks required by AASHTO, we evaluate the foundation soil beneath the MSE mass. SPT borings or CPT soundings are correlated to allowable bearing pressures, and we flag any soft zones that require over-excavation or soil replacement.
03
Drainage & Long-Term Performance Review
Water is the primary enemy of MSE walls in Birmingham Alabama. We design the subsurface drainage system including chimney drains, collector pipes, and outlet protection. We also review the long-term creep and corrosion resistance of the selected geogrid polymer.
Applicable standards
AASHTO LRFD Bridge Design Specifications (9th Ed., 2020) Section 11, FHWA NHI-10-024: Mechanically Stabilized Earth Walls and Reinforced Soil Slopes, ASTM D6637-21: Tensile Properties of Geogrids by Multi-Rib Method, ASTM D5321-20: Direct Shear Test of Geosynthetic-Soil Interfaces
Frequently asked questions
What is the typical height limit for an MSE wall in Birmingham Alabama?
There is no strict code height limit, but walls taller than 40 feet usually require a tiered configuration with a minimum 10-foot setback between tiers. The City of Birmingham follows the IBC 2018 with local amendments, and the design must be signed by a licensed Professional Engineer in Alabama.
How does the local clay affect MSE wall backfill requirements?
The residual clay soils common in the Birmingham area have high plasticity and are not suitable as reinforced fill. The specification typically requires a granular backfill with less than 15% passing the No. 200 sieve and a Plasticity Index below 6. Imported crushed limestone screenings from local quarries often meet this criterion well.
How much does an MSE wall design study cost in Birmingham Alabama?
A complete MSE wall design package including subsurface exploration, laboratory testing, and stamped calculations typically ranges between US$1,350 and US$4,430 depending on wall height, length, and site complexity. The final cost is determined after the initial site reconnaissance.
What is the difference between a wrapped-face and a panel-face MSE wall?
A wrapped-face wall uses geogrid turned up at the face and covered with a erosion-control mat, while a panel-face wall uses precast concrete panels that provide a rigid architectural finish. Panel-face walls are more common in Birmingham Alabama for permanent structures near roads or buildings, whereas wrapped-face walls are often used for temporary slopes or landscaping.
