Birmingham sits at an elevation of about 600 feet and was founded in 1871, but its most relevant seismic event was the 1916 Irondale earthquake, a magnitude 5.1 that rattled the region. That event alone makes clear why understanding ground response matters here. We apply the HVSR microtremor survey (Nakamura method) to measure the horizontal-to-vertical spectral ratio of ambient vibrations, giving us the site's fundamental frequency. Before we design foundations or retrofit existing structures, this passive technique helps us classify the soil column without drilling. In Birmingham Alabama, where much of the bedrock is Paleozoic limestone and dolomite overlain by residual soils, the HVSR survey pinpoints resonance conditions that affect everything from mid-rise buildings to bridge piers. For deeper characterization, we often pair this with a [MASW survey](/masw-vs30/) to capture shear-wave velocity profiles across the same site.
The 1916 Irondale earthquake showed Birmingham that even moderate shaking can cause damage; the HVSR method identifies which sites will amplify that motion.
Methodology and scope
Birmingham grew fast during the iron and steel boom, and much of its urban core sits on weathered shale and limestone with highly variable thickness. That geologic legacy means two sites a block apart can have completely different dynamic responses. The HVSR microtremor survey works by recording 30 to 60 minutes of ambient noise with a three-component seismometer, then processing the H/V ratio to identify the fundamental frequency (f0). Key parameters we extract include:
Fundamental frequency (f0) in Hz — typically 2 to 10 Hz for Birmingham Alabama soils
Estimated thickness of soil cover using the quarter-wavelength relationship
This data feeds directly into site classification per ASCE 7-22 and IBC 2021. For projects on fill or soft alluvium along Valley Creek or Village Creek, we cross-check results with a calicata exploration to confirm stratigraphy at depth.

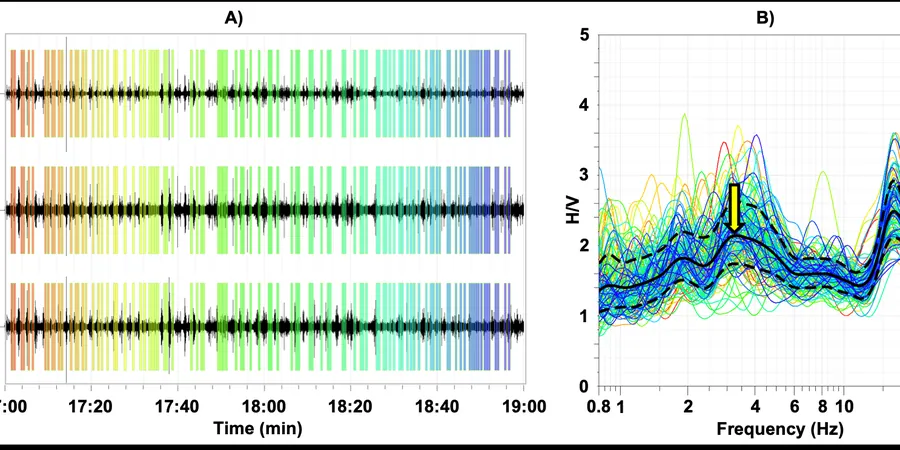

Technical reference image — Birmingham Alabama
Local considerations
Birmingham Alabama experiences about 10 to 15 felt earthquakes per decade, mostly small, but the risk comes from amplified ground motion in the thick residual soils that mantle the Ridge and Valley province. The typical 15 to 40 feet of clayey silt and sand over limestone can trap seismic energy and double or triple peak ground acceleration at the surface. Without an HVSR microtremor survey, a designer might assume a stiff site class C when the actual behavior is class D or even E at certain frequencies. We have seen cases where a 4-story building on weathered shale had a natural frequency close to 3 Hz, right where the soil column resonated. That mismatch caused non-structural damage during minor tremors. Identifying this early avoids expensive retrofits later.
Urban areas, existing structures, remote sites without access for drilling
Standard reference
SESAME guidelines (2004), ASCE 7-22 site classification
Associated technical services
01
Single-Station HVSR Survey
A standalone measurement at one location, ideal for small residential lots or preliminary screening. We deploy one seismometer, record for 45 minutes, and deliver a report with f0, A0, and site class recommendation per ASCE 7.
02
Multi-Station HVSR Array
Five or more stations along a profile to map lateral variation in soil thickness. Useful for school sites, apartment complexes, or linear infrastructure. We interpolate the H/V curves to produce a 2D section of fundamental frequency.
03
Combined HVSR + MASW Package
Integrates passive HVSR with active MASW for Vs30 profiles down to 30 meters. This is the gold standard for IBC site classification and liquefaction assessment in Birmingham Alabama.
Applicable standards
SESAME European Research Project guidelines for HVSR (2004), ASCE 7-22 — Site classification and seismic design criteria, IBC 2021 — International Building Code seismic provisions
Frequently asked questions
What is the HVSR microtremor survey and how does the Nakamura method work?
The HVSR method records ambient vibrations (microtremors) using a three-component seismometer. The horizontal-to-vertical spectral ratio isolates the fundamental resonance frequency of the soil column — the frequency at which the site will amplify seismic waves. It is a passive, non-invasive technique that requires no drilling or artificial energy source.
How much does an HVSR microtremor survey cost in Birmingham Alabama?
Typical cost ranges between US$1,630 and US$2,870 per project, depending on the number of stations, site access conditions, and whether you combine it with MASW. Single-station surveys at the lower end; multi-station arrays with interpretation fall at the higher end. Contact us for a quote specific to your site.
How does HVSR data improve seismic design for buildings in Birmingham?
The fundamental frequency from HVSR tells you if the building's natural frequency will coincide with the ground's resonance. If they match, even a moderate earthquake can cause amplified motion. Engineers use this to adjust stiffness, add damping, or change the foundation system. In Birmingham Alabama, where soil thickness varies rapidly, this is critical for code-compliant design.
Can HVSR be performed inside existing buildings or in tight urban lots?
Yes. The sensor is compact and requires only a stable, flat spot on the ground floor or basement slab. We have completed surveys inside parking garages, schools, and occupied office buildings in downtown Birmingham. The method works well in noisy urban environments because the signal processing filters out transient disturbances.
