Many construction teams in Birmingham, Alabama skip the permeability test early in the design phase. That is a costly mistake. They assume the local red clay has uniform drainage everywhere. In reality, the residual soils from the Appalachian foothills shift from low-plasticity clays to silty sands within a single block. Without a proper laboratory permeability test under falling or constant head, engineers risk oversizing drainage systems or designing foundations that sit in waterlogged subgrades. We see this error repeatedly on commercial sites near the Cahaba River floodplain. The test clarifies how fast water moves through the soil matrix. That single data point saves weeks of rework.
The permeability test revealed a coefficient of 2.3×10⁻⁷ cm/s in clay and 3.8×10⁻³ cm/s in sand. That contrast changed the drainage design completely.
Methodology and scope
We recently worked on a six-story parking structure near the Birmingham-Jefferson Convention Complex. The soil profile showed stiff clay over a sand lens at 4.5 meters depth. The geotechnical team needed a laboratory permeability test to size the under-slab drainage. We used the falling head method on the clay and the constant head method on the sand. Both samples came from thin-walled tube samplers. The test revealed a coefficient of permeability of 2.3×10⁻⁷ cm/s in the clay and 3.8×10⁻³ cm/s in the sand. That contrast changed the drainage design completely. We paired the test with a granulometría to confirm gradation and with an ensayo de corte directo to evaluate shear strength under saturated conditions. The combination gave the structural engineers a complete picture.

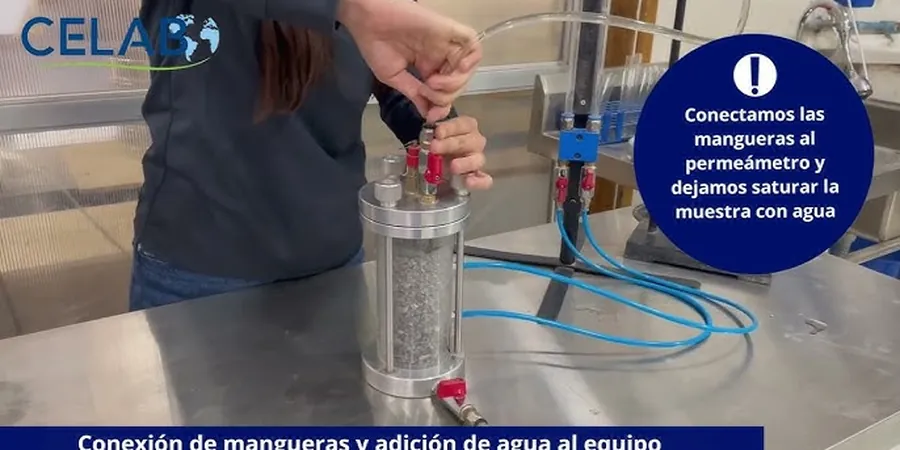

Technical reference image — Birmingham Alabama
Local considerations
Birmingham sits in a humid subtropical climate with an average annual rainfall of 54 inches. The summer storms are intense. A common oversight is running only field infiltration tests and skipping the controlled lab permeability test. Field tests measure near-surface conditions but miss the permeability of deeper strata. In Birmingham, the shallow clay crust can be misleading. Below it, sandy silt layers from the Pottsville Formation can drain quickly and cause piping under retaining walls. Combining the field data with a laboratory permeability test under constant head gives the real hydraulic conductivity. That dual approach prevents slope failures along the Red Mountain cut slopes.
Fine-grained (falling) and coarse-grained (constant)
Coefficient range measured
10⁻¹ to 10⁻⁸ cm/s
Sample preparation
Undisturbed thin-wall tube or remolded compaction
Hydraulic gradient applied
Typically 1.0 to 5.0 depending on soil type
Temperature correction
Corrected to 20°C per ASTM D2434
Associated technical services
01
Falling Head Permeability (Fine-Grained Soils)
Designed for clays and silts. Uses a standpipe and measures the time for water to fall between two marks. Ideal for low-permeability soils common in Birmingham's residential subdivisions.
02
Constant Head Permeability (Coarse-Grained Soils)
Applied to sands and gravels. Maintains a steady hydraulic gradient throughout the test. Suitable for the sandy lenses found beneath the Valley and Ridge province in Birmingham.
03
Flexible Wall Permeability
Uses a triaxial cell with back-pressure saturation. Eliminates sidewall leakage and measures very low permeabilities down to 10⁻⁸ cm/s. Required for clay liners and landfill cap designs.
04
Rigid Wall Permeability
A cost-effective option for compacted soils and granular materials. Uses a fixed mold and a constant or falling head setup. Common for quality control of compacted fill on highway projects near I-65.
Applicable standards
ASTM D2434-22 (Constant Head Permeability of Granular Soils), ASTM D5084-16a (Falling Head Permeability of Fine-Grained Soils), ASTM D422-63 (Grain-Size Analysis for Gradation Control)
Frequently asked questions
What is the difference between falling head and constant head permeability tests?
The falling head method is used for fine-grained soils like clays and silts where water flows slowly. The constant head method is for coarse-grained soils like sands and gravels where flow is faster. Both follow ASTM D2434 and D5084, and the choice depends on the soil gradation found in the borehole.
How much does a laboratory permeability test cost in Birmingham, Alabama?
The typical cost for a single laboratory permeability test in Birmingham ranges from US$420 to US$720. The final price depends on the method (falling vs. constant head), the number of samples, and whether flexible wall or rigid wall equipment is needed. Contact us for a quote based on your project scope.
Why do I need a lab permeability test if I already did a field infiltration test?
Field infiltration tests only measure the top layer of soil. In Birmingham, the shallow clay crust often masks deeper sandy layers. A lab test on undisturbed samples from multiple depths gives the true hydraulic conductivity profile. This is critical for designing drainage systems, retaining walls, and foundation waterproofing in the Birmingham area.
What soil types in Birmingham require a constant head test vs. a falling head test?
Sands and gravelly soils from the Pottsville Formation require the constant head method. Clays and silts from the Valley and Ridge residual soils require the falling head method. If your site has interbedded sand and clay layers, we run both methods on separate samples to capture the full range of permeability values.
