Birmingham's growth as an industrial hub after the Civil War shaped its urban layout, with rail corridors and heavy manufacturing zones concentrated along valley floors. Those same valleys, underlain by weathered Paleozoic limestone and shale, now carry some of the city's busiest truck routes. The legacy of subsurface variability here means that flexible pavement design cannot rely on generic county maps. We have seen too many projects where a thin asphalt section over a stiff residual soil performed well for years, while the same section on a colluvial fill failed within two seasons. That is why we always start with site-specific CBR testing and traffic load spectra before proposing a structural number. For corridors with heavy dump trucks serving the quarries north of town, we also recommend a CBR vial evaluation to calibrate the subgrade modulus for the design period.
A pavement that works on the alluvial plains of the Black Belt may fail on the weathered shale ridges of Birmingham in under three years.
Methodology and scope
Birmingham sits at an average elevation of 614 feet, with rainfall averaging 54 inches per year, among the highest in the southeastern U.S. That combination of clayey subgrades and high moisture drives the need for drainage design in every flexible pavement section. Our approach follows AASHTO 1993 for structural number calculation and the AASHTOWare Pavement ME Design procedure for mechanistic-empirical analysis. We measure the subgrade resilient modulus through repeated-load CBR tests (ASTM D1883) and back-calculate the layer coefficients from falling weight deflectometer data. The typical pavement structure we see here includes a 4- to 6-inch asphalt concrete surface over a 6- to 8-inch crushed aggregate base, but that varies with traffic volume and subgrade strength. When soils show plasticity indices above 20, we incorporate a stabilized subgrade layer or a geotextile separation layer to prevent pumping and reduce rutting potential.

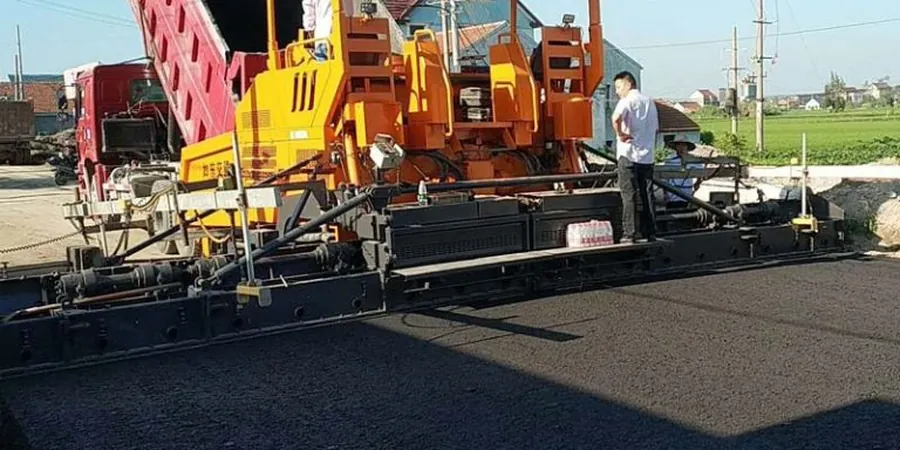

Technical reference image — Birmingham Alabama
Local considerations
The contrast between the humid subtropical climate and the region's karstic geology creates a specific failure risk for flexible pavements in Birmingham. Prolonged wet periods saturate the clay subgrades, reducing their California Bearing Ratio by as much as 50% relative to dry conditions. Combine that with freeze-thaw cycles that occur roughly 40 days per year north of I-20, and the pavement experiences both freeze-thaw heave and spring thaw weakening within the same year. We have documented cases where a pavement designed with a CBR of 6 under dry conditions rutted 0.75 inches after one winter because the design did not account for the saturated subgrade modulus. Our designs for Birmingham always include a minimum of two drainage checks: one for the subgrade during the critical spring period and one for the base course to prevent moisture entrapment that leads to stripping.
20 years (standard); 10-30 years per client specification
Traffic Volume Range
100 to 10,000 ESALs per day
Subgrade CBR (typical range)
3% to 15%
Resilient Modulus (Mr)
4,000 to 18,000 psi (from CBR correlation or FWD)
Asphalt Concrete Thickness
3 to 8 inches
Base Course Thickness
6 to 12 inches of crushed aggregate
Drainage Coefficient (m_i)
0.80 to 1.15 per AASHTO
Reliability Level
80% to 95% depending on road class
Associated technical services
01
Traffic Analysis & ESAL Calculation
We collect historical traffic counts, weigh-in-motion data from ALDOT, and project future lane distributions. Our team calculates the 18-kip equivalent single-axle loads for the design period, including growth factors for industrial corridors serving the Port of Birmingham.
02
Subgrade Investigation & CBR Testing
We perform test pits and dynamic cone penetrometer surveys to identify soil layers. Samples are tested for CBR (soaked and unsoaked), Atterberg limits, and gradation. For projects on the weathered shale of Red Mountain, we also run swell tests to evaluate potential heave.
Using AASHTO 1993 and MEPDG, we determine the required thicknesses of asphalt concrete, base, and subbase layers. For existing pavements, we conduct FWD deflection testing and back-calculate layer moduli to design cost-effective overlays.
Applicable standards
AASHTO Guide for Design of Pavement Structures 1993, AASHTOWare Pavement ME Design (MEPDG), ASTM D1883 (CBR test), ASTM D1195/D1195M (plate load test for subgrade modulus)
Frequently asked questions
What soil types in Birmingham most affect flexible pavement design?
Red clay residual soils from weathered limestone and shale are dominant. These soils have high plasticity (PI 20-40) and are prone to volume change with moisture. Colluvial fills along valley bottoms often have variable CBR values (2-8), requiring more conservative design or subgrade improvement.
How does the high rainfall in Birmingham impact pavement design?
Annual rainfall of 54 inches saturates subgrades for extended periods. We use soaked CBR values (ASTM D1883) for design to simulate worst-case conditions. Drainage layers and edge drains are typically specified to prevent moisture buildup in the base course.
What is the typical cost range for flexible pavement design in Birmingham, Alabama?
The cost for a complete flexible pavement design study in Birmingham ranges between US$1,520 and US$5,970. This includes traffic analysis, subgrade investigation, CBR testing, and a final structural design report. The exact price depends on the number of test locations and the complexity of traffic projection.
Do you use the AASHTO 1993 or the MEPDG design method?
We apply both. The AASHTO 1993 empirical method is used for routine local roads and low-volume streets. For highways and industrial pavements with heavy truck traffic, we use the mechanistic-empirical AASHTOWare Pavement ME Design procedure, which accounts for Birmingham's climate data and site-specific layer moduli.
Can you design an overlay for an existing asphalt pavement in Birmingham?
Yes. We perform falling weight deflectometer testing to evaluate the structural capacity of the existing pavement. The deflection basin is back-calculated to determine the effective modulus of each layer. The overlay thickness is then designed per AASHTO 1993 or MEPDG, depending on traffic levels and remaining life.
