Birmingham Alabama sits on the edge of the Appalachian Piedmont, where residual soils derived from weathered metamorphic rock dominate the upper 10 to 20 meters. These soils are typically silty sands and sandy clays with a plasticity index ranging from 15 to 25, and the water table often drops below 8 meters in upland areas. For shallow foundation design, the presence of corestones — partially weathered boulders within the saprolite — can create misleading blow counts during SPT and requires careful interpretation of N-values. We routinely combine field data with laboratory tests like suelos residuales classification to distinguish between competent bearing strata and zones of low-density weathered material that could cause differential settlement under spread footings.
In Birmingham’s Piedmont, corestones within saprolite can spike SPT N-values temporarily, leading to unconservative bearing estimates if not cross-checked with excavation logs.
Methodology and scope
A six-story apartment project near Railroad Park needed spread footings sized to limit total settlement to 25 mm under service loads. The geotechnical investigation revealed a 4-meter layer of stiff sandy clay overlying a dense silty sand with SPT N-values above 40 blows per 0.3 m. We recommended a net allowable bearing pressure of 250 kPa, but with a specific note: the clay layer could experience long-term consolidation if groundwater fluctuated. In these cases we also evaluate cimentaciones-rellenos to understand how placement sequences affect load distribution. For shallow foundation design in Birmingham Alabama, the variability in depth to refusal — sometimes 2 meters, sometimes 14 — demands at least one boring per 300 m² of footprint to capture the irregular bedrock profile typical of the region.

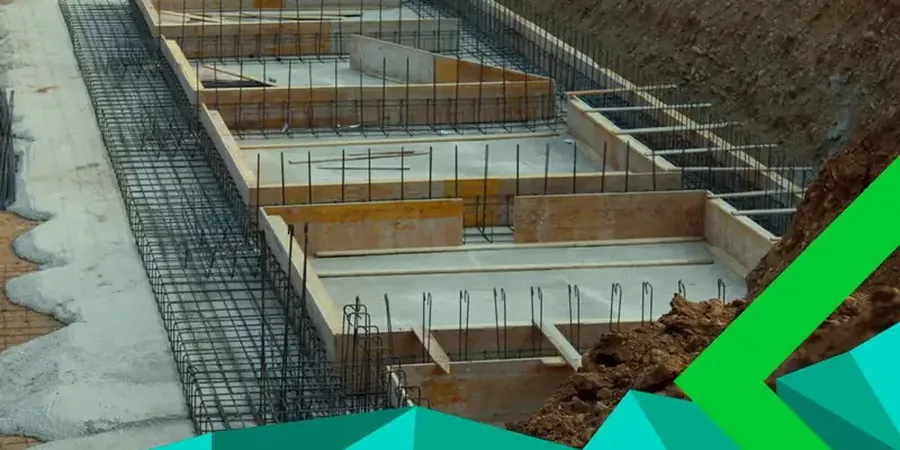

Technical reference image — Birmingham Alabama
Local considerations
With an estimated 212,000 residents and a history of tornado damage rather than seismic shaking, Birmingham Alabama rarely faces liquefaction hazards. The bigger risk for shallow foundation design here is differential settlement caused by the irregular weathering front of the Piedmont. A footing set 1 meter into stiff clay may perform fine, while an adjacent footing only 6 meters away encounters a buried corestone that forces excavation deeper or requires footing enlargement. We’ve seen cases where ignoring this variability led to 40 mm of differential movement in a single masonry wall. Properly spaced borings and calicatas exploratorias can expose these anomalies before concrete is poured.
We calculate net allowable bearing pressure using Terzaghi’s and Meyerhof’s methods, incorporating SPT N-values, shear strength from triaxial tests, and groundwater depth. Reports include settlement estimates under working loads and recommendations for footing dimensions.
02
Residual Soil Characterization
Given the prevalence of Piedmont saprolite, we classify soil profiles using grain-size distribution, Atterberg limits, and moisture content. This helps differentiate between competent residual soil and zones of softened material that require deeper foundation embedment.
Applicable standards
ASCE 7-16 (Minimum Design Loads), IBC 2021 Chapter 18 (Soils and Foundations), ASTM D1586-18 (Standard Test Method for SPT)
Frequently asked questions
What is the typical bearing capacity of shallow foundations in Birmingham Alabama?
In the Piedmont region, net allowable bearing pressures range from 150 to 300 kPa depending on the density and consistency of the residual soil. Sites with deep saprolite and N-values above 40 can support higher values, while areas with soft clay or shallow rock require site-specific evaluation.
Do I need a geotechnical report for a residential shallow foundation in Birmingham?
Yes, especially if the house is on a hillside or in a neighborhood underlain by variable saprolite. IBC 2021 requires a soils investigation for structures in Seismic Design Categories C, D, E or F, and part of Birmingham falls into Category C. Even for single-family homes, a shallow foundation design based on a single boring can catch problematic corestones or soft layers.
How deep should spread footings be in Piedmont residual soils?
Depth to competent bearing material varies widely. In upland areas, footings typically bear at 1.0 to 1.5 meters depth, but we often encounter refusal on partially weathered rock at 3 to 5 meters. The footing must extend below the zone of seasonal moisture change, which in Birmingham’s clay-rich soils is about 1.2 meters.
What is the difference between SPT N-value and design bearing capacity for shallow foundations?
SPT N-value is a field measure of soil resistance to penetration, while bearing capacity is a calculated allowable pressure based on shear strength and settlement limits. For shallow foundation design, we apply correlation factors (e.g., Bowles, Peck) to convert N-values to approximate bearing capacity, but always verify with laboratory tests on undisturbed samples.
