Birmingham Alabama grew fast after the iron boom of the late 1800s. The city spread across ridges and valleys carved into the Appalachian Piedmont. That geology creates real challenges for deep foundations. The residual soils derived from weathered metamorphic rock are highly variable. Hard rock can sit just feet below soft clay. Jet grouting design in Birmingham Alabama addresses exactly this contrast. We engineer soil-cement columns that lock into competent strata and bypass weak upper layers. The approach works especially well where access is tight or vibration must be avoided. Before designing a column layout we typically run a MASW survey to map stiffness contrasts across the site.
Jet grouting design in Birmingham Alabama must handle shallow rock and perched water within the same column. Site-specific trials are non-negotiable.
Methodology and scope
Piedmont residual soils in Birmingham Alabama show a distinct weathering profile. The upper zone is sandy silt with low strength. Below that lies partially weathered rock with seams of saprolite. Groundwater is often perched above the rock surface. Jet grouting design must account for this layered behavior. We use single-fluid and double-fluid systems depending on soil type. Parameters like grout pressure between 300 and 450 bar, rotation speed of 12 to 20 rpm, and lift rate of 4 to 8 cm/s are calibrated per trial column. Quality control includes wet sampling of the spoil and unconfined compression testing on cured cores. The table below shows typical design parameters used in our projects.

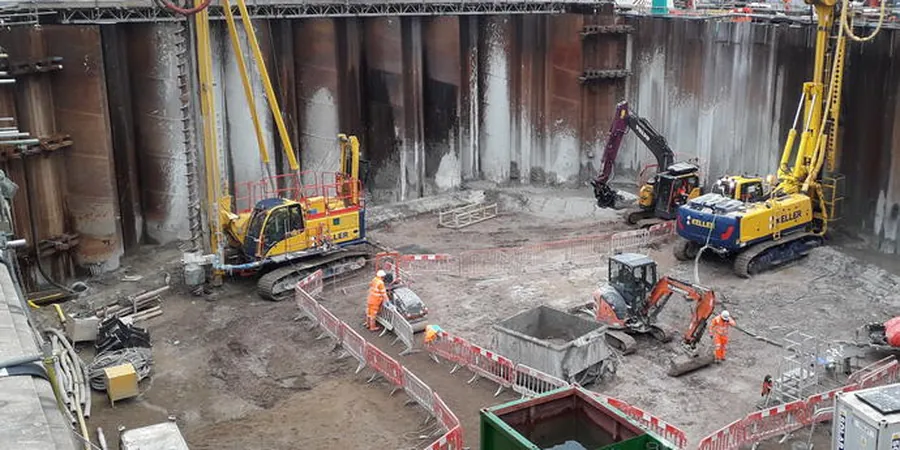

Technical reference image — Birmingham Alabama
Local considerations
Birmingham Alabama sits in a moderate seismic zone per ASCE 7-22. The Piedmont geology can amplify ground motion when soft residual soils overlie hard rock. Jet grouting design reduces this risk by creating stiff inclusions that improve the overall soil matrix. Another concern is groundwater chemistry. The acidic nature of Piedmont groundwater can affect grout set time. We adjust the mix design with retarders or accelerators as needed. Without proper trials, columns may wash out in sandy zones or set too fast in clayey seams. Early monitoring of spoil density and return flow is critical.
We develop column layouts based on target bearing capacity and settlement limits. The design includes material specifications, rig selection, and quality control protocols. We calibrate parameters using trial columns on site.
02
Grout Mix Design and Testing
We formulate and test grout mixes using site soil and water samples. Tests include Marsh cone viscosity, density, bleed, and unconfined compressive strength. The mix is adjusted for the Piedmont's acidic groundwater.
Applicable standards
IBC 2021 (Chapter 18 – Soils and Foundations), ASCE 7-22 (Seismic Site Class and Ground Motion), ASTM D5092 (Standard Practice for Grouting), FHWA-HRT-17-046 (Jet Grouting Design Guide)
Frequently asked questions
What soil conditions make jet grouting design suitable for Birmingham Alabama?
Jet grouting is ideal where residual soils vary rapidly in strength and stiffness. The Piedmont's weathered profile includes soft clayey silt over partially weathered rock. Jet grouting can treat both layers in one column, creating a uniform foundation element.
What is the typical cost range for jet grouting design services in Birmingham Alabama?
Design fees typically range between US$1,550 and US$5,930 depending on site complexity, number of trial columns, and reporting requirements. A full design package includes mix design, column layout, and quality control plan.
How does shallow rock affect jet grouting design parameters?
Shallow rock reduces the effective column length. The design must adjust lift rate and pressure to avoid fracturing the underlying rock mass. We use lower pressures and slower lifts when rock is within 3 meters of the surface.
What quality control tests are required during jet grouting in Piedmont soils?
Required tests include wet density and flow rate of the return spoil, unconfined compression tests on hardened cores, and column diameter verification via excavation or coring. We also monitor grout pressure and flow continuously during injection.
