Our field team deploys multichannel seismic refraction equipment across Birmingham Alabama to measure vs30/" data-interlink="1">shear wave velocity profiles. The rig includes a 24-channel seismograph, 4.5 Hz geophones, and a 10-lb sledgehammer source. We follow ASTM D4428/MASW standards to capture data from the residual Piedmont soils that dominate the region. Before modeling, we often run a complementary MASW/VS30 survey to correlate surface waves with borehole findings. The entire setup packs into a standard truck and requires no heavy drilling, which keeps mobilization fast across the city's varied topography.
VS30 values in Birmingham Alabama range from 300 m/s in the valley fills to 600 m/s on the Ridge-and-Valley ridges, shifting site class from D to C.
Methodology and scope
A four-story medical office planned near the Red Mountain Expressway needed site-specific seismic response coefficients. The IBC 2021 requires Class C or D site factors for the deep clay and weathered rock profile found in Birmingham Alabama. We measured VS30 at 580 m/s using active MASW and passive array methods, confirming Class C conditions. For shallow fills over limestone we also conducted a soil liquefaction study to rule out cyclic softening, and a dynamic compaction evaluation to estimate post-treatment stiffness. The final report provided spectral acceleration curves for both MCE and DBE levels, tailored to the 0.2s and 1.0s periods relevant for the building height.
Technical reference image — Birmingham Alabama
Local considerations
The Piedmont residual soils in Birmingham Alabama often hide a sharp impedance contrast between the weathered saprolite and the underlying hard bedrock. That contrast can amplify ground motion by a factor of 2 to 3 at periods below 0.3 seconds, which affects low-rise structures more than high-rises. Without a proper amplification analysis, engineers may underestimate the base shear demand. The Alabama Department of Public Health requires amplification studies for hospitals and schools under the Alabama Building Commission standards.
Multi-channel analysis of surface waves using sledgehammer and ambient noise to produce 1D shear wave velocity profiles down to 30 m. Suitable for Class C/D site classification.
02
Seismic Refraction Tomography
P-wave velocity imaging to map bedrock depth and weathered zone geometry. Combined with MASW data to build a complete soil-column model for ground response analysis.
What is seismic amplification analysis and why does Birmingham Alabama need it?
Seismic amplification analysis estimates how local soil layers modify earthquake ground motion. Birmingham Alabama sits on Piedmont residual soils over hard rock. The weathered zone amplifies short-period shaking, which can increase forces on low-rise buildings. The analysis provides site-specific spectral accelerations required by ASCE 7 for structural design.
How much does a seismic amplification study cost in Birmingham Alabama?
A typical study including field MASW, data processing, and a report costs between US$1.090 and US$2.270. The price depends on site access, number of array lines, and whether you need a full ground response analysis or just VS30 classification.
What site class is most common in Birmingham Alabama?
Most of Birmingham Alabama falls under Site Class C (very dense soil and soft rock) or Class D (stiff soil). The deep clays and weathered saprolite in the Valley areas often push toward Class D, while the ridges with shallow rock produce Class B or C. We confirm the class by measuring VS30 on your specific lot.
Do I need this analysis for a residential project in Birmingham Alabama?
For single-family homes on shallow foundations, the IBC default site class often suffices. But for any structure with a Seismic Design Category of C or higher — such as multi-family buildings, schools, or medical clinics — a site-specific amplification analysis is legally required. The Alabama Building Commission enforces this for all occupancy category II and above.
How long does the field work take and when do I get results?

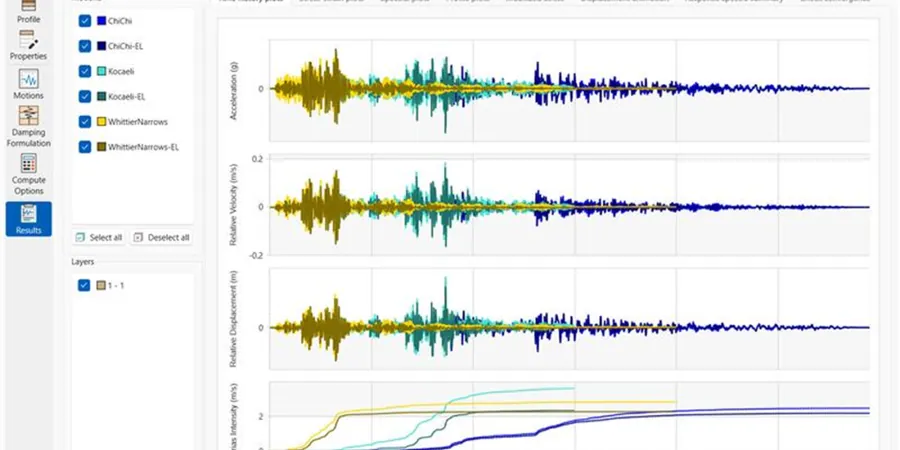

Field data collection for a typical MASW survey takes 2 to 4 hours on site. We process the waveforms and generate VS30 profiles within 3 business days. If you need a full ground response analysis with acceleration time histories, add 2 more days for SHAKE or DeepSoil modeling.
