Geotechnical Drainage Design in Birmingham, Alabama

We deploy vacuum-assisted wellpoints and trench drains across Birmingham Alabama projects, from the Cahaba River corridor to Red Mountain foothills. Our crews rig dewatering systems that lower the water table before excavation, then install subsurface drains that intercept lateral flow. Each layout is modeled using the local soil permeability data we collect on site. Ground conditions here vary block by block — silty sand near the airport, stiff clay under Forest Park — so we adjust drain spacing and filter design accordingly. Pairing this with permeability testing in the lab gives us the actual k-values needed to size the system correctly before we break ground.

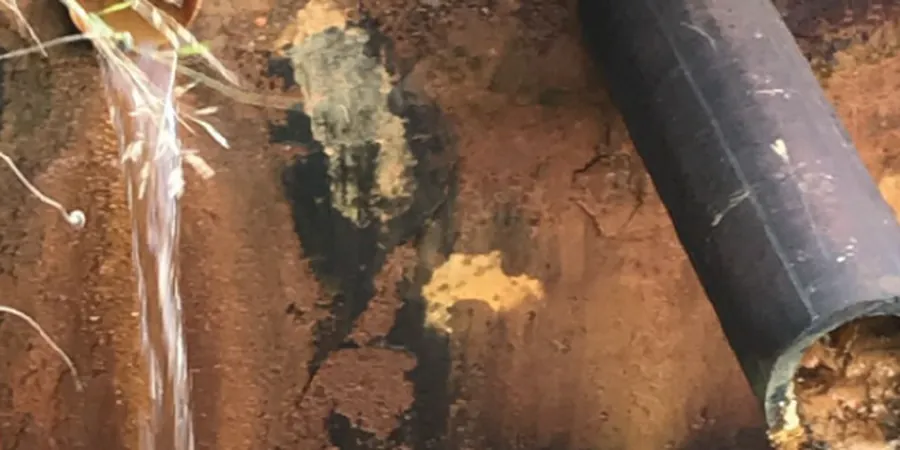

Illustrative image of Drenaje geotecnico in Birmingham Alabama

Birmingham clay holds water like a sponge. If you don't drain it before placing fill, you're building on a weak, saturated foundation that will settle unevenly.

Methodology and scope

Birmingham Alabama gets 54 inches of rain annually, and the iron-rich clay soils turn into a plastic mess when saturated. That moisture gets trapped between the Paleozoic limestone bedrock and the topsoil, creating perched water tables that undermine pavements and foundations. We design drainage blankets and curtain drains that intercept this interflow before it reaches structures. On the Southside slopes, we combine horizontal drains with erosion control measures to prevent rills from turning into gullies after thunderstorms. The design always accounts for the low infiltration rate of the residual soils — typical k-values here run 10⁻⁶ to 10⁻⁷ cm/s, so gravity drainage alone seldom works without geocomposite strips or sand columns.

Local considerations

We see it often in Vestavia and Mountain Brook: a contractor backfills a basement wall with the native red clay, then wonders why the waterproofing fails. That clay expands when wet and shrinks when dry, pulling the drainage aggregate away from the wall. The water finds the path of least resistance — straight into the foundation. A proper geotechnical drainage design in Birmingham Alabama must include a washed stone envelope wrapped in non-woven geotextile, with a daylight outlet at least 2% slope. Skip that detail, and you'll be excavating again within two years to fix the hydrostatic pressure damage.

Parameter	Typical value
Soil permeability range (k)	1×10⁻⁶ to 1×10⁻⁷ cm/s (CH clays)
Design storm recurrence	10-year, 24-hour (IBC 2018)
Filter fabric opening size	0.212 mm (ASTM D4751)
Perforated pipe diameter	6 to 12 in. (ASTM F405)
Drain spacing for slopes	15 to 30 ft on center

Parameter

Typical value

Soil permeability range (k)

1×10⁻⁶ to 1×10⁻⁷ cm/s (CH clays)

Design storm recurrence

10-year, 24-hour (IBC 2018)

Filter fabric opening size

0.212 mm (ASTM D4751)

Perforated pipe diameter

6 to 12 in. (ASTM F405)

Drain spacing for slopes

15 to 30 ft on center

Associated technical services

Subsurface drain layout

Sizing of perforated pipe networks, stone envelopes, and filter fabrics for foundation perimeter and slope toe drains.

Dewatering system design

Wellpoint, deep well, and eductor systems sized for the specific soil stratigraphy and excavation depth on your site.

Surface water management

Swales, curb inlets, and riprap channels designed to divert runoff away from cut slopes and retaining walls.

Drainage for retaining walls

Weep holes, prefabricated drainage sheets, and granular backfill specifications that prevent hydrostatic buildup behind MSE and cantilever walls.

Frequently asked questions

How much does a geotechnical drainage design in Birmingham Alabama cost?

For a typical residential lot (one foundation perimeter system with daylight outlet), the design fee runs between US$840 and US$2,310. Larger commercial sites with multiple drain lines and dewatering plans fall at the higher end. The final number depends on the number of boring locations and the complexity of the groundwater control.

Do I need a drainage design if the site is on a hilltop?

Yes. Birmingham Alabama hilltops often sit on weathered limestone with solution cavities that channel water unpredictably. Without a design that accounts for subsurface flow paths, water can emerge at the cut face or seep through the slab years later. We always run at least one infiltration test per 10,000 sq ft to map the actual drainage pattern before sizing the system.

How long does the drainage design process take?

From the day we receive the soil borings and site survey, the design takes 7 to 10 business days for a standard residential project. Commercial or multi-lot developments with stormwater detention requirements can extend to 3 weeks. We coordinate directly with the civil engineer to match the drainage layout to the grading plan.
