Birmingham sits at an average elevation of about 610 feet above sea level, straddling the transition from the Cumberland Plateau to the Piedmont physiographic province. This geologic setting means the city's subgrade is a patchwork of deeply weathered granite-gneiss residual soils, sandy clayey silts, and occasional lenses of poorly compacted historic fill from its industrial past. A rigorous settlement analysis in Birmingham Alabama must account for this variability: the compressibility of residual profiles differs markedly from that of transported sediments, and the presence of old slag or mine waste can introduce collapse potential under footing loads. We combine standard oedometer testing with field plate load tests to calibrate the modulus of subgrade reaction. For projects near the Red Mountain ridge, where shallow rock is overlain by thin colluvium, we also recommend a geophysical survey using MASW to map stiffness contrasts before modeling settlement under working loads.
We measure preconsolidation pressure to distinguish overconsolidated from normally consolidated layers — that distinction governs whether immediate or long-term settlement controls foundation design.
Methodology and scope
A common mistake we see among local contractors is assuming that all Piedmont residual soils behave like stiff clays with low compressibility. In reality, the saprolite structure — inherited from the parent rock fabric — can produce anisotropic settlement, with vertical strains exceeding horizontal ones by a factor of two or more. A proper settlement analysis in Birmingham Alabama must therefore include undisturbed sampling via thin-walled Shelby tubes and one-dimensional consolidation tests per ASTM D2435. We measure preconsolidation pressure (σ'p) to distinguish overconsolidated from normally consolidated layers, which directly governs whether immediate, primary, or secondary compression controls the foundation behavior. When we encounter loose fill or soft alluvial deposits along the Cahaba River floodplain, we integrate preloading with vertical drains to accelerate consolidation before slab placement. Our laboratory holds ISO 17025 accreditation, and we report results with stress-strain curves and coefficient of consolidation (Cv) values at each load increment.

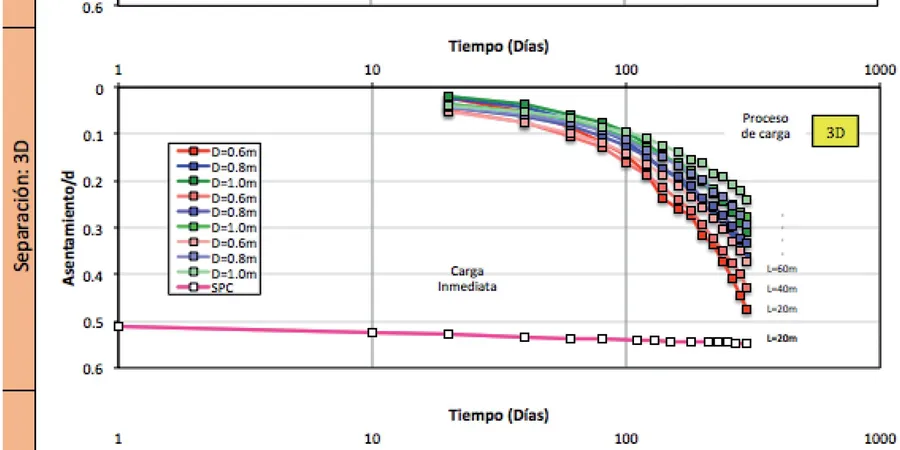

Technical reference image — Birmingham Alabama
Local considerations
In Birmingham, we frequently observe that shallow foundations bearing on residual silt-clay profiles undergo differential settlement when groundwater fluctuates seasonally by more than 6 feet. The perched water table atop the weathered rock contact can soften the upper subgrade during wet months, then desiccate and crack it during droughts, creating uneven support under column footings. Our settlement analysis in Birmingham Alabama addresses this by specifying drained vs. undrained conditions in the consolidation model and recommending a capillary-break layer where cyclic moisture changes are likely. We also flag sites near old mine adits or limestone solution cavities — these create voids that can trigger sudden collapse settlement, requiring either deep foundations or grouting to stabilize the soil mass below the active zone.
Standard Consolidation Testing & Settlement Prediction
We perform incremental-load oedometer tests (ASTM D2435) on undisturbed samples from each stratum. Output includes σ'p, Cc, Cs, and Cv. We then run one-dimensional consolidation analysis to compute total and time-rate settlement for square, continuous, or isolated footings. For slabs on grade, we add a subgrade reaction modulus (k) derived from plate load tests.
02
Advanced Numerical Modeling (FEM) for Differential Settlement
Using Plaxis 2D or 3D, we model the soil-structure interaction for critical elements such as elevator pits, column clusters, and retaining walls. We input anisotropic stiffness parameters from triaxial tests and simulate staged construction. This service is essential for projects with tight differential settlement tolerances (less than 1/500) or where adjacent buildings impose surcharge loads.
How much does a settlement analysis cost in Birmingham Alabama?
A standard settlement analysis for a small residential building typically ranges from US$600 to US$1,520, depending on the number of consolidation tests and the complexity of the soil profile. For larger commercial projects requiring numerical modeling, the fee may increase proportionally with the scope of field sampling and analysis.
What is the difference between immediate and consolidation settlement?
Immediate settlement occurs rapidly upon load application, primarily in coarse-grained soils or unsaturated fine-grained soils, and is computed using elastic theory (modulus of elasticity). Consolidation settlement is time-dependent and happens in saturated clays as pore water dissipates; it is predicted using the compression index (Cc) and preconsolidation pressure from oedometer tests. In Birmingham's residual soils, both components can be significant.
Is a settlement analysis required by the Alabama Building Code?
The Alabama Building Code, which adopts the International Building Code (IBC), requires that foundation design account for total and differential settlement. IBC Section 1803.5 mandates a geotechnical investigation that includes settlement estimates. For structures on expansive or compressible soils, a formal settlement analysis is effectively mandatory to meet the code's performance criteria.
What factors cause differential settlement in Piedmont soils?
Differential settlement in Piedmont residual soils is commonly driven by three factors: (1) anisotropic stiffness due to relict rock structure, (2) moisture-induced volume changes in clay-rich saprolite, and (3) buried organic layers or old fill with variable compaction. Our analysis isolates each factor through targeted testing and recommends mitigation such as stiffened rafts or deep foundations where needed.
