A common mistake contractors make in Birmingham Alabama is assuming shallow fill soils can support heavy structural loads without treatment. The Piedmont residuum and valley fill deposits in Jefferson County often hide loose zones or buried organic layers that settle unevenly under vibration or load. Relying on standard spread footings without verifying the deeper profile can lead to differential settlement within the first year. Dynamic compaction design addresses this by applying high-energy tamping to densify the soil mass to depths of 6 to 10 meters, depending on the drop weight and grid spacing. Before the dynamic compaction design is finalized, we integrate a MASW survey to map stiffness contrasts across the site and confirm target depths. The approach follows ASCE 7 criteria for site class and IBC Chapter 18, ensuring the improved ground meets bearing capacity and liquefaction resistance requirements for Birmingham Alabama conditions.
Dynamic compaction design in Birmingham Alabama must calibrate tamper energy against karst cavity depth and saprolite thickness to avoid over-treatment or settlement underperformance.
Methodology and scope
Birmingham sits over the Valley and Ridge province, where interbedded limestone, shale, and sandstone create highly variable weathering profiles. Karst features are common in the western part of the city, while the eastern areas have thick saprolitic clay derived from crystalline rock. Dynamic compaction design in Birmingham Alabama must account for these contrasts. The process involves dropping a steel tamper weighing 10 to 20 tons from heights of 15 to 30 meters in a pre-determined grid pattern. We calibrate the energy per unit volume against the CPTu dissipation tests to estimate pore pressure dissipation rates in the clay layers. The following technical parameters are used for the design in this region:
Tamper mass: 12–18 t
Drop height: 18–25 m
Grid spacing: 4–6 m
Number of passes: 2–3
Target relative density: 70–85 %
Improvement depth: 6–9 m

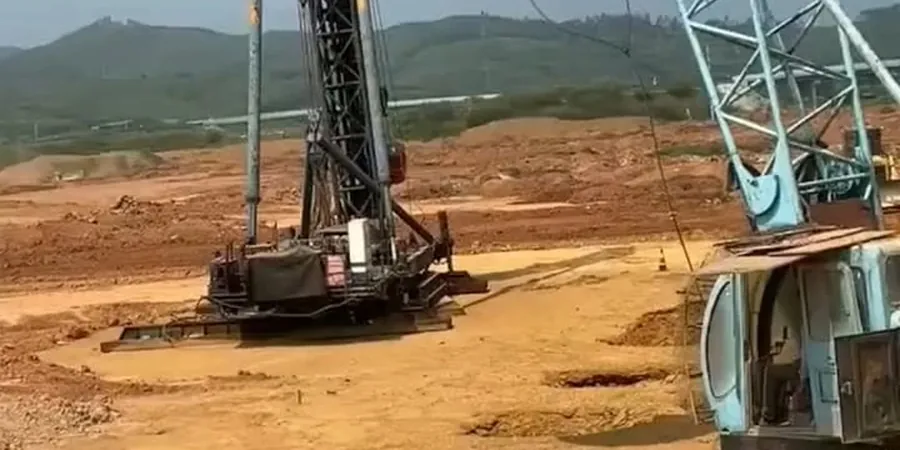

Technical reference image — Birmingham Alabama
Local considerations
In Birmingham Alabama, we often see projects where the dynamic compaction design was applied uniformly across a site without adjusting for depth to bedrock or cavity presence. On a recent warehouse development near Oxmoor Valley, the fill thickness varied from 3 to 11 meters within a 50-meter distance. The design team had to modify the drop pattern to avoid over-compacting the shallow rock zones while still densifying the deeper loose fill. Without a phased monitoring approach using settlement plates and in-situ density tests, the risk of non-uniform compaction is high. The geotechnical instrumentation program we recommend includes real-time pore pressure monitoring to detect when the soil is approaching optimum compaction without excess pore pressure build-up, a typical issue in the clay-rich soils of the region.
We compute tamper weight, drop height, and grid layout based on target depth, soil density profile, and proximity to karst cavities. The calculation follows the energy approach from Menard and is adjusted for the Piedmont residuum conditions in Birmingham.
02
Pre- and Post-Treatment Verification
SPT, CPTu, and plate load tests before and after compaction confirm the achieved density and modulus. We compare results against the design bearing capacity (typically 150–300 kPa) and settlement limits.
03
Fill Material Characterization
Testing of existing fill and imported materials for compaction curves, moisture-density relationship, and shear strength. This ensures the dynamic compaction design works with the actual soil on site, not assumed values.
04
Monitoring & Quality Control Plan
Instrumentation with settlement plates, inclinometers, and pore pressure transducers during the compaction process. Data is reviewed daily to adjust the drop sequence if the soil response deviates from the design predictions.
Applicable standards
ASCE 7-22 Site Class Criteria, IBC 2021 Chapter 18 – Soils and Foundations, ASTM D1586-18 Standard Test Method for SPT, FHWA GEC 1 – Ground Improvement Methods
Frequently asked questions
How does dynamic compaction design differ for Birmingham's karst terrain compared to other cities?
Birmingham Alabama has significant karst features in its western areas, with limestone cavities that can collapse under dynamic loads. The design must include a pre-compaction cavity detection survey (using MASW or microgravity) to map voids. The tamper energy is then reduced over known cavity zones to avoid triggering collapse, while the rest of the site receives full energy. Standard dynamic compaction design for non-karst sites often omits this step, making it critical for Birmingham projects.
What is the typical cost range for a dynamic compaction design study in Birmingham Alabama?
For a typical medium-scale project (0.5 to 2 hectares), the dynamic compaction design study including field investigation, energy calculation, and verification testing costs between US$1,360 and US$4,210. This does not include the compaction work itself, only the design and quality control planning. The range varies with site complexity, number of verification points, and depth of treatment required.
Can dynamic compaction be combined with other ground improvement methods in Birmingham Alabama?
Yes, it is common to combine dynamic compaction with preloading or vertical drains when the site has thick soft clay layers below the fill. The dynamic compaction densifies the upper 6-9 meters, while preloading with wick drains accelerates consolidation of the deeper clay. In Birmingham Alabama, where the clay can be over 10 meters deep in some valleys, this hybrid approach is often more cost-effective than deep foundation alternatives.
