Plate Load Test (PLT) in Birmingham, Alabama

A common mistake we see from contractors in Birmingham is assuming soil bearing capacity from a nearby project. The Piedmont geology here varies block by block. Residual soils over weathered rock can show 3,000 psf in one corner and 6,000 psf fifty feet away. Without a plate load test (PLT), you risk overdesigning footings or undersizing them. We run PLT on compacted fills and natural ground to confirm the design values. For deeper profiles, we pair this with an ensayo SPT to correlate blow counts with plate results. That way, the geotechnical report reflects real behavior, not a guess.

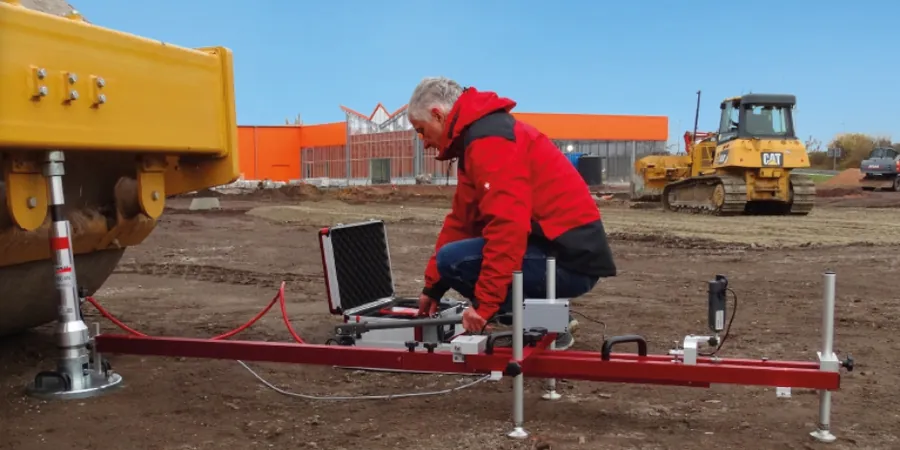

Illustrative image of Placa de carga in Birmingham Alabama

A plate load test directly measures bearing capacity and settlement modulus — no correlations, no guesswork.

Methodology and scope

Birmingham grew fast during the steel boom, and many old fills were never tested. The city sits on the Valley and Ridge province, with folded sedimentary rock and clayey residual soils. That history matters because plate load test (PLT) is the only field method that directly measures modulus of subgrade reaction (k-value). We load a 12-inch or 30-inch steel plate in increments, recording settlement with dial gauges. The test follows ASTM D1196. We run it on subgrade for flexible pavements, on prepared bases for rigid slabs, and on natural ground for shallow footings. When soils are loose, we recommend a precarga before testing to simulate final load conditions. For pavement design, PLT gives the k-value needed by AASHTO and the city's own roadway specs.

Local considerations

ASCE 7 and the 2021 International Building Code require site-specific bearing values for structures in Seismic Design Category C and above. Birmingham falls in SDC C for most of the metro area. If you rely on presumptive bearing values from Table 1806.2 without verification, you may miss settlement issues in the clayey silts that underlie many downtown lots. A plate load test (PLT) run at foundation level confirms the allowable bearing pressure and settlement modulus. We also check for soil variability across the footprint. When the site has deep loose fills, we suggest a estudio de licuefaccion since saturated sandy layers could lose strength during shaking.

Technical parameters

Parameter	Typical value
Plate diameter	12 in (305 mm) or 30 in (762 mm)
Maximum load	Up to 100,000 lb (445 kN)
Settlement measurement	Three dial gauges, 0.001 in resolution
Reaction system	Hydraulic jack against a loaded truck or anchor beams
Test standard	ASTM D1196 / D1196M-20
Output parameters	Bearing capacity, modulus of subgrade reaction (k), settlement modulus (Es)

Associated technical services

PLT on Natural Ground

Test on undisturbed soil at foundation level. We excavate a test pit, level the area, and apply load increments to failure or design load. Results include bearing capacity and settlement modulus.

PLT on Compacted Fill

Verify that engineered fills meet design k-value and density. We test after compaction and before slab placement. Ideal for parking lots, warehouse slabs, and building pads.

PLT for Pavement Design

Measure the modulus of subgrade reaction (k) for rigid pavement design. We load a 30-inch plate and record deflection curves. The data goes into AASHTO 93 or Pavement ME.

PLT on Existing Slabs

Test on existing concrete or asphalt slabs to assess subgrade support for overlays or load increases. Uses a 12-inch plate with a load cell and dial gauges.

Frequently asked questions

How much does a plate load test cost in Birmingham?

A standard plate load test in Birmingham runs between US$770 and US$1,080 for one test location on natural ground. The price includes mobilization, one load cycle to 200% of design load, and a field report. Additional cycles or deeper test pits add to the cost.

What is the difference between plate load test and CBR?

The plate load test (PLT) measures bearing capacity and modulus of subgrade reaction (k-value) under a rigid plate. CBR is a penetration test performed on compacted soil in a mold or in place. PLT gives direct settlement behavior; CBR is a relative strength index used mainly for pavement design.

Can I use PLT for footing design in Birmingham red clay?

Yes. Birmingham red clay (residual from weathered limestone and shale) can vary in strength. We run PLT at footing depth to get the actual bearing capacity. The test also reveals if the clay is brittle or ductile under load. We recommend at least one test per soil type on site.
