The difference between building on the Ridge in Red Mountain versus the floodplain soils near Five Points South is dramatic. Red Mountain sits on hard limestone and sandstone, while the Valley floor holds thick deposits of soft clay and silt. For projects in those low-lying areas of Birmingham Alabama, the field vane shear test (VST) is the fastest way to measure in-situ undrained shear strength without disturbing the sensitive soil structure. The VST directly targets the soft, saturated clays that would be too fragile for a standard SPT. Before designing foundations there, we recommend pairing the VST with a stability analysis to confirm slope safety and consolidation testing to predict long-term settlement.
In the Birmingham Valley soft clays, the VST provides undrained shear strength directly at depth without sample disturbance — a critical advantage over lab tests.
Methodology and scope
A recent multi-story apartment project near the Cahaba River needed reliable shear strength data for mat foundation design. The site had 8 meters of soft clay over stiff residual soil. We ran the VST at 1.5-meter intervals down the borehole. The procedure is straightforward: the four-blade vane is pushed into undisturbed soil, then rotated at a steady rate of 6 degrees per minute. Peak torque is recorded, and the test continues for remolded strength. The equipment meets ASTM D2573-19 standards. Results are used immediately for bearing capacity calculations. For deeper profiles, combining VST with CPT gives a continuous strength log that captures thin clay layers the vane alone might miss.

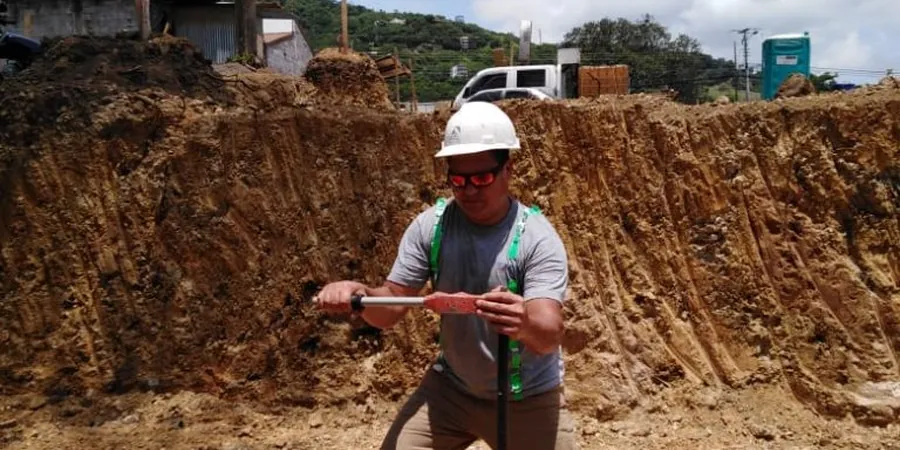

Technical reference image — Birmingham Alabama
Local considerations
Birmingham Alabama sits within the passive continental margin, not a high seismic zone, but the real hazard here is the thick, saturated clay deposits of the Black Warrior Basin. These soils can undergo significant strength loss under sustained loading or rapid construction. The field vane shear test (VST) is the only in-situ method that directly measures the undrained shear strength of these soft clays without extracting a sample. Without it, designers risk overestimating bearing capacity by 30% or more, leading to differential settlement or foundation failure. The VST is not optional for soft clay sites — it is the standard.
Complete field vane shear testing at specified depths following ASTM D2573. Includes torque measurement, data logging, and on-site preliminary results.
02
Remolded strength testing
After peak torque, the vane is rotated rapidly to remold the soil, then retested to measure sensitivity. Essential for evaluating liquefaction potential and clay behavior.
03
VST in boreholes with SPT
Combined testing: SPT at 1.5 m intervals for granular layers, VST in soft clay layers. Provides a complete geotechnical profile for multi-layer sites.
04
Data interpretation & reporting
Final report includes corrected undrained shear strength vs. depth, sensitivity values, and recommendations for bearing capacity, slope stability, and foundation type.
Applicable standards
ASTM D2573-19 (Standard Test Method for Field Vane Shear Test in Saturated Fine-Grained Soils), ASTM D1586-18 (Standard Test Method for Standard Penetration Test — used alongside VST for full profile), ASCE 7-22 (Minimum Design Loads — guidance on soil parameters for foundation design)
Frequently asked questions
What is the difference between field vane shear test and laboratory vane test?
The field vane shear test (VST) measures undrained shear strength in-situ, directly in the soil deposit without sample disturbance. The laboratory vane test uses a remolded or undisturbed sample extracted from the borehole, which can alter the soil fabric. For sensitive clays in Birmingham Alabama, the field VST gives more reliable peak strength values because the soil remains at its natural stress state and water content.
How much does the field vane shear test cost in Birmingham Alabama?
The typical cost for field vane shear testing in Birmingham Alabama ranges between US$620 and US$1,260, depending on the number of test depths, site accessibility, and whether it is combined with other in-situ tests like SPT or CPT. Mob/demob and daily rates may apply for remote sites.
How deep can the VST be performed?
Standard field vane shear testing can be performed up to approximately 30 meters depth, limited by the drill rig capacity and rod friction. In the soft clays of the Birmingham Valley, we typically test to 15 meters because that covers the full soft clay profile overlying the stiff residual soils. Deeper tests require a heavier rig and may increase cost.
What are the limitations of the field vane shear test?
The VST is only applicable in saturated, fine-grained soils (clays and silts) with undrained shear strength typically below 200 kPa. It cannot be used in sands, gravels, or stiff overconsolidated clays. The test also assumes isotropic undrained strength, which may not hold for highly anisotropic or fissured clays. In such cases, a combination of VST and triaxial testing is recommended.
