Working on projects in Birmingham Alabama, we often see designs that assume uniform subgrade conditions across the city's varied geology. The Piedmont region brings residual soils with high silt and clay fractions near the surface, while the Valley and Ridge province introduces weathered rock and steeper gradients. In our experience, specifying a geogrid without understanding the actual soil stiffness can lead to overdesign or premature pavement failure. That is why we always pair a geogrid specification with a placa de carga test to verify the subgrade modulus before finalizing the reinforcement layer. The local soils demand a careful balance between tensile strength and elongation at yield, something that a generic catalog pick rarely delivers.
A geogrid specification in Birmingham Alabama must match the local residual soil gradation and moisture regime, not a generic table from a manufacturer.
Methodology and scope
When defining a geogrid specification in Birmingham Alabama, we reference AASHTO M 288 for geosynthetic reinforcement and ASTM D6637 for tensile testing. The key parameters we evaluate include the ultimate tensile strength at 2% and 5% strain, the junction strength for biaxial grids, and the flexural rigidity for installation survivability. For a typical roadway project in the Cahaba Valley area, we often recommend a biaxial geogrid with an ultimate tensile strength of at least 12 kN/m in both directions, paired with a minimum junction efficiency of 90%. We also check the aperture size against the local soil's D85 to prevent internal clogging; a granulometria analysis gives us the particle size distribution needed for that match. In wider fills, we combine the grid with a corte directo test on the soil-geogrid interface to confirm the interface friction angle under site moisture conditions. This layered approach ensures the specification is not just a number on paper.

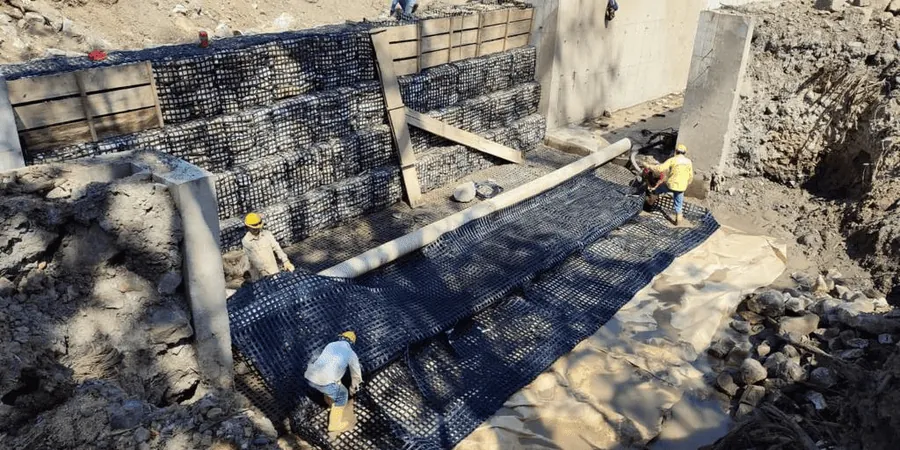

Technical reference image — Birmingham Alabama
Local considerations
During field installation in Birmingham Alabama, the biggest risk we see is damage from construction equipment on the geogrid before cover soil is placed. The local practice of using tracked dozers on thin lifts can tear or displace the grid if the specification does not include a minimum cover thickness of 150 mm. Another common issue is water pooling in cuts during the wet season — the grid acts as a drainage plane if the subgrade is not shaped properly, leading to loss of interlock. That is why we always recommend a densidad cono de arena check on the first lift above the grid to confirm compaction has locked the aggregate into the apertures. Without that step, the reinforcement is just a layer of plastic sitting on mud.
We run Atterberg limits, natural moisture content, and sieve analysis on the site soil to classify it per USCS and determine the D85 needed for aperture selection. This service includes a density profile to identify soft spots where the geogrid must bridge.
02
Interface Friction Testing
Using a large direct shear box (300 mm), we measure the interface friction angle between the candidate geogrid and the site soil under saturated and unsaturated conditions. The results feed directly into the pullout resistance calculation required by AASHTO.
03
Installation Quality Control
Our field technicians verify overlap length, anchor trench depth, and cover thickness during placement. We also perform in-situ density tests on the first lift to confirm aggregate penetration into the apertures, ensuring the grid is mechanically locked.
Applicable standards
ASTM D6637 (Standard Test Method for Determining Tensile Properties of Geogrids), AASHTO M 288 (Standard Specification for Geosynthetic Reinforcement), ASTM D7748 (Standard Test Method for Flexural Rigidity of Geogrids), ASTM D5262 (Standard Test Method for Evaluating the Unconfined Tension Creep Behavior of Geogrids)
Frequently asked questions
What is the typical cost for a geogrid specification study in Birmingham Alabama?
For a standard roadway section in Birmingham Alabama, the cost ranges between US$420 and US$1,120 depending on the number of soil samples tested, the type of interface testing required, and whether field verification is included. Large projects with multiple grid types may fall at the upper end of that range.
How do local soil conditions affect the geogrid specification?
Birmingham Alabama has residual soils from the Piedmont and weathered limestone from the Valley and Ridge. These soils tend to have high fines content and can be sensitive to moisture. A geogrid specified for a dry, granular subgrade may not develop proper interlock in these clays. We always check the D85 against the aperture size and run interface friction tests at the expected field moisture content.
What tensile strength should I specify for a parking lot in Birmingham Alabama?
For light vehicle traffic on a well-compacted subgrade (CBR ≥ 3%), a biaxial geogrid with an ultimate tensile strength of 12 kN/m in both directions is usually sufficient. If the subgrade CBR drops below 2% or you expect heavy truck loads, we recommend stepping up to 20 kN/m. The final value depends on the base course thickness and traffic frequency.
Can a geogrid specification replace a thicker aggregate base?
In many cases, yes. A properly specified geogrid can reduce the base course thickness by 30% to 50% while maintaining the same design life, provided the subgrade is uniform and the grid is correctly installed. However, the geogrid does not improve drainage or frost protection, so those aspects must be addressed separately in the pavement design.
