In Birmingham Alabama, soil conditions shift noticeably between the upland ridges of Red Mountain and the clay-filled valleys near Village Creek. The sandy loam on the slopes allows moderate percolation, while the dense residual clays of the Coastal Plain deposits can severely limit infiltration. This variability makes site-specific infiltration tests essential for any stormwater detention design. The double-ring infiltrometer method provides a direct measurement of field-saturated hydraulic conductivity, giving engineers the data needed to size infiltration basins and rain gardens accurately. Without a proper infiltration test, the risk of undersized drainage systems or seasonal ponding increases significantly.
In Birmingham's clay-rich soils, an infiltration test often takes two to four hours to reach steady-state flow — critical data for sizing stormwater basins correctly.
Methodology and scope
Birmingham Alabama grew rapidly during the post-war industrial boom, and much of its stormwater infrastructure was designed without considering modern low-impact development standards. The underlying geology includes weathered Paleozoic limestone and shale, which can create preferential flow paths along fractures that a standard percolation test might miss. Our field procedure follows ASTM D3385, using a double-ring infiltrometer to isolate vertical flow and minimize lateral spreading. We often pair the infiltration test with a soil classification study to identify clay mineralogy that could affect long-term permeability. The test typically runs until steady-state flow is achieved, which in the area's clay-rich soils can take two to four hours.
Technical reference image — Birmingham Alabama
Local considerations
A commercial development along Highway 280 in Birmingham Alabama had a detention basin designed using published table values for sandy loam. The actual subgrade was clayey silt with low permeability, and the basin ponded water for weeks after construction. The county required a retrofit with an underdrain system that cost over $40,000. A simple double-ring infiltrometer test on site before design would have caught the discrepancy. That is why we always recommend running at least three infiltration tests per proposed basin footprint, spaced across the area to capture lateral variability in the soil profile.
ASTM D3385 compliant tests using 30 cm inner ring and 60 cm outer ring. We maintain constant head with a Mariotte siphon system and record readings every 5 minutes until steady-state flow is reached. Results include Kfs values and a detailed site map showing test locations.
02

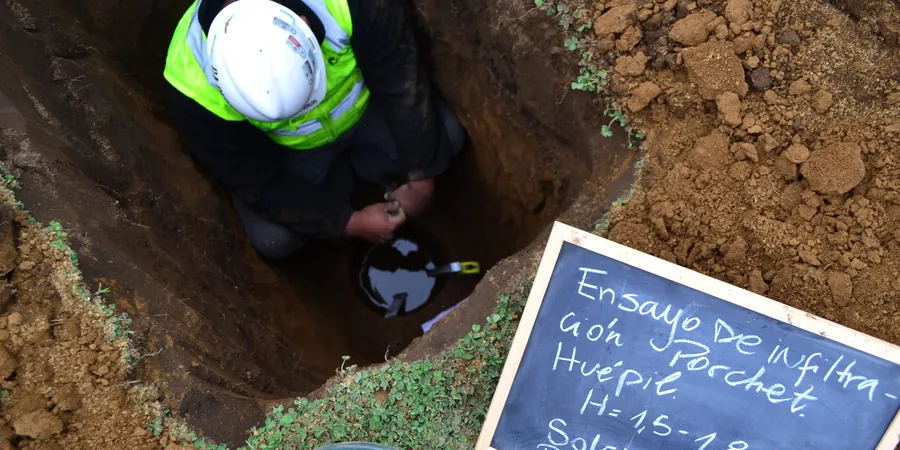

Porchet test (falling head)
For shallow infiltration applications like rain gardens or bioswales, we use the Porchet method with a 15 cm augered hole. This test is faster and requires less water, making it suitable for preliminary screening or low-budget projects. We correlate results with the double-ring method when higher accuracy is needed.
Applicable standards
ASTM D3385-18 (Standard Test Method for Infiltration Rate of Soils in Field Using Double-Ring Infiltrometer), IBC 2018 Section 1807 (Stormwater Infiltration Systems), Alabama Department of Environmental Management (ADEM) Stormwater Management Guidelines
Frequently asked questions
How many infiltration tests are needed for a typical stormwater basin in Birmingham Alabama?
For a single basin footprint, we recommend a minimum of three tests at different locations to capture soil variability. The Alabama Stormwater Manual suggests at least one test per 5,000 square feet of infiltration area, but more tests are advisable where clay lenses are suspected.
What is the difference between a double-ring infiltrometer and a Porchet test?
The double-ring infiltrometer isolates vertical flow by using an outer guard ring to prevent lateral spreading, giving a more accurate Kfs value for deep infiltration. The Porchet test uses a single auger hole with falling head and is quicker but more influenced by sidewall seepage. For regulatory compliance in Birmingham, the double-ring method is preferred.
How much does an infiltration test cost in Birmingham Alabama?
A standard double-ring infiltrometer test including mobilization within Jefferson County, setup, steady-state readings, and a brief report typically ranges between US$280 and US$400 per test location. Volume discounts apply for multiple test points on the same site.
When should I schedule infiltration testing during site development?
Ideally, infiltration testing should be done after rough grading but before final stormwater design. Testing on undisturbed subgrade gives the most representative results. If testing is done before grading, the data should be re-evaluated once the site is leveled, as compaction from heavy equipment can reduce permeability significantly.
