Oedometer Consolidation Test in Birmingham Alabama

Together, we solve the challenges of tomorrow.

LEARN MORE →

The Piedmont geology beneath Birmingham Alabama presents a complex mix of residual soils and weathered metamorphic rock. These clay-rich profiles are prone to significant volume change under load. Our oedometer consolidation test directly measures how much and how fast a saturated clay layer will compress. We apply incremental loading following ASTM D2435-11 to determine the preconsolidation pressure and compression index. This data is essential for foundation design on the soft alluvial deposits found along the Cahaba River floodplain. Before finalizing your project in Birmingham Alabama, combine this test with a presurometro survey to capture lateral stress conditions and a placa de carga plate load test for immediate bearing verification.

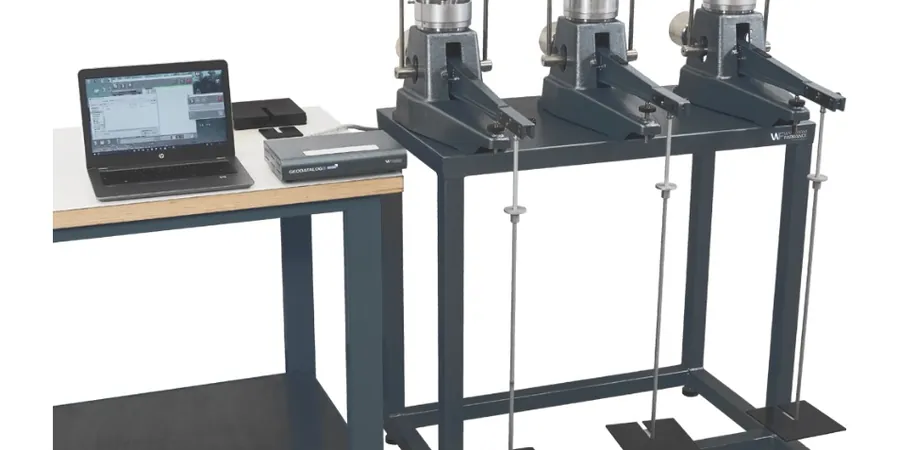

Illustrative image of Consolidacion in Birmingham Alabama
A 5-foot clay layer can settle 4 inches under a typical warehouse load if preconsolidation pressure is not identified.

Methodology and scope

A common mistake in Birmingham Alabama is assuming that stiff surface crust means low settlement potential. Below that crust, the residual clay can reach 30 to 50 feet of thickness. Our oedometer test isolates the consolidation behavior of those deeper layers. We run the test on undisturbed tube samples trimmed into stainless steel rings. Each load increment stays on for 24 hours, or until primary consolidation ends. We record deformation with dial gauges accurate to 0.0001 inch. The output includes the coefficient of consolidation (cv) and the recompression index (Cr). Use this data to calibrate your settlement predictions. For shallow foundations on fill, we recommend also reviewing cimentaciones-superficiales guidelines and running a compresion-simple unconfined compression test on the same sample set.
Technical reference image — Birmingham Alabama

Local considerations

Compare a site in the Roebuck neighborhood with one in Mountain Brook. Roebuck sits on deeper alluvial clays from the Village Creek drainage. Mountain Brook is underlain by weathered dolomite and limestone. An oedometer test in Roebuck may show a compression index of 0.35, while the Mountain Brook sample might be below 0.10. Ignoring this difference leads to differential settlement between columns. In Birmingham Alabama, the transition from clay to rock can happen within a single building footprint. Our consolidation test identifies those transitions before concrete is poured. We also include the swell pressure parameter for expansive clay zones. Pair this analysis with an ensayo-spt to correlate blow counts with compressibility.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.xyz

Technical parameters

ParameterTypical value
StandardASTM D2435-11
Sample typeUndisturbed Shelby tube, 3-inch diameter
Load increments8 to 12 steps, 0.25 to 16 tsf
Measured parametersCc, Cr, cv, mv, s'p
Duration7 to 14 days per test
Reportinge-log p curve, settlement vs. time plots

Associated technical services

01

Standard Incremental Consolidation Test

Eight load increments from 0.25 to 16 tsf with full e-log p curve and cv determination. Suitable for typical commercial buildings and residential slabs in Birmingham Alabama. Includes rebound/reload cycle.

02

Constant Rate of Strain (CRS) Consolidation Test

Faster alternative for homogeneous clay. Single continuous loading at 0.5 to 1% strain per hour. Delivers preconsolidation pressure in 2-3 days. Ideal for deep foundation projects in the Birmingham Alabama area where time is critical.

Applicable standards

ASTM D2435-11: Standard Test Methods for One-Dimensional Consolidation Properties of Soils, ASTM D2487-17: Standard Practice for Classification of Soils for Engineering Purposes (USCS), ASTM D4220-17: Standard Practices for Preserving and Transporting Soil Samples

Frequently asked questions

How long does an oedometer consolidation test take in Birmingham Alabama?

The standard incremental test runs 7 to 14 days depending on the number of load steps and the soil permeability. For low-plasticity clays common in Birmingham Alabama, we often finish in 9 days. The CRS test is faster, typically 2 to 3 days.

What is the typical cost range for an oedometer test in Birmingham Alabama?

For a standard eight-increment test with full reporting, expect between $220 and $500 per sample. The CRS test is usually at the lower end of that range. Volume discounts apply for multiple samples from the same site.

Do I need a consolidation test if I already have SPT blow counts?

SPT blow counts give an estimate of relative density or consistency, but they do not measure compressibility directly. For soft clay sites in Birmingham Alabama, the oedometer test provides the actual compression index and preconsolidation pressure required for settlement calculations. SPT alone cannot replace this data.

Location and service area

We serve projects across Birmingham Alabama.
