In Birmingham, many projects hit a hard reality: the transition from residual soil to weathered rock is rarely uniform. The geotechnical design of deep excavations here must account for the Piedmont's erratic saprolite layers and the occasional boulder fields left by ancient weathering. A standard braced cut may not work where a diabase dike intrudes mid-excavation. That is why our approach starts with targeted field testing, often combining MASW profiles to map Vs30 variability with SPT borings to confirm refusal depths. This dual method gives us a reliable subsurface model before we commit to a shoring system.
The transition from residual soil to weathered rock in Birmingham is rarely uniform — our design must adapt to sharp lateral changes in rock quality.
Methodology and scope
Birmingham sits on a mix of Paleozoic sedimentary rocks and Piedmont metamorphic formations. The sedimentary sequence includes limestone, dolomite, and shale, while the Piedmont carries gneiss and schist. This duality creates sharp lateral changes in rock quality. For the geotechnical design of deep excavations, we prioritize:
Rock mass classification using RQD and fracture spacing from oriented coring.
Groundwater monitoring via nested piezometers, especially near Valley Creek and Village Creek floodplains.
Shear strength testing on discontinuities for wedge stability analysis in rock cuts.
We also cross-reference IBC 2021 seismic site class criteria with downhole seismic surveys to refine the design response spectrum. This is critical because Birmingham's site class can shift from C to B within 50 meters horizontally.

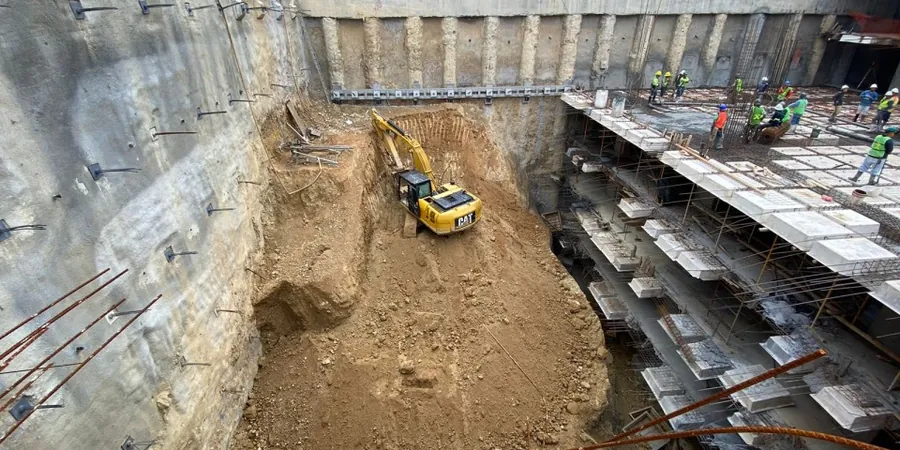

Technical reference image — Birmingham Alabama
Local considerations
Birmingham's urban core expanded rapidly after the 1880s, often without deep foundation records. Many existing structures downtown sit on shallow spread footings over fill or weathered shale. When new deep excavations cut adjacent to these older buildings, the risk of differential settlement rises sharply. The geotechnical design of deep excavations in these blocks must include pre-construction condition surveys and underpinning schemes. We have seen cases where a 12-meter soldier pile wall induced 15 mm of settlement in a neighboring masonry building because the rock line dipped unexpectedly. Instrumentation with inclinometers and settlement points is non-negotiable here.
We design soldier pile walls using H-piles driven to rock refusal, with timber or shotcrete lagging. Our designs include tieback anchors for walls exceeding 8 m height, with corrosion protection per PTI recommendations.
02
Sheet Pile and Braced Cut Design
For cohesive soils and dewatered conditions, we design interlocking sheet pile walls with internal bracing. We calculate strut loads using the Terzaghi-Peck apparent pressure envelope, adjusted for Birmingham's soil stiffness.
03
Secant Pile and Tangent Pile Walls
When groundwater cutoff is required, we design secant pile walls using overlapping reinforced concrete piles. We specify mix designs for the primary piles (low-strength) and secondary piles (structural grade) to ensure watertightness.
Applicable standards
IBC 2021 Section 1806 (Presumptive Load-Bearing Values), ASCE 7-22 Chapter 20 (Site Classification for Seismic Design), ASTM D1586-18 (Standard Test Method for SPT), ASTM D6032-17 (Standard Test Method for RQD)
Frequently asked questions
What is the typical cost range for geotechnical design of deep excavations in Birmingham Alabama?
The cost for geotechnical design of deep excavations in Birmingham Alabama typically ranges from US$2,250 to US$7,800, depending on excavation depth, soil conditions, and shoring complexity. A 10-meter wall in residual soil with soldier piles and tiebacks falls near the lower end, while a 20-meter secant pile wall in mixed ground approaches the upper end. Final pricing depends on the number of design iterations and monitoring requirements.
How deep can excavations go before shoring is mandatory in Birmingham?
Under IBC 2021 and OSHA 29 CFR 1926 Subpart P, any excavation deeper than 1.5 meters (5 feet) requires protective systems unless the excavation is in stable rock. In practice, Birmingham's residual soils rarely stand vertically beyond 2 meters. The geotechnical design of deep excavations typically starts at 3 meters depth, where sloughing and raveling become significant risks.
What shoring method works best in Birmingham's limestone and dolomite formations?
In the sedimentary rock zones (limestone and dolomite), rock-socketed soldier piles or tieback anchors are most effective. The rock provides high bond capacity, often allowing single-row anchors at 15-degree inclination. We recommend rock mass classification using RQD and joint roughness before finalizing anchor bond lengths, as solution cavities in limestone can reduce grout take.
Do deep excavations in Birmingham require groundwater control?
Yes, especially near the Valley Creek and Village Creek corridors where groundwater is encountered between 3 m and 8 m depth. In Piedmont residual soils, the saprolite often holds perched water tables. We design dewatering systems using wellpoints or deep wells, with recharge trenches to minimize settlement of adjacent structures. For excavations through limestone, we plan for solution channels that can produce sudden inflows.
