The contrast in Birmingham Alabama between the sandy loams of the eastern suburbs and the heavy, plastic clays of the western valleys is stark. A road that holds up well in Vestavia Hills can crack and rut within months in Ensley if the subgrade isn't treated. That is why soil stabilization for roads here is not a standard procedure — it is a site-specific diagnosis. We have seen too many subdivision streets fail because the contractor added lime by guesswork instead of by laboratory design. The local geology demands precision, and our approach starts with sampling the actual borrow source or cut section before recommending any additive. Before mobilizing equipment, we always run a full suite of index tests and a CBR test to establish baseline strength.
A 2% lime addition can cut the plasticity index of a Birmingham clay from 40 to 12, but only if the soil is properly mellowed and compacted at optimum moisture.
Methodology and scope
Birmingham Alabama sits at the southern end of the Appalachian Ridge and Valley province, which means the soil profile can change from residual clay to limestone chert in less than a hundred meters. The city receives about 55 inches of rainfall annually, so moisture-sensitive subgrades are a constant headache. Our soil stabilization for roads targets three main objectives: reducing plasticity index below 15, raising CBR to at least 20 for base courses, and controlling volume change. We use a phased approach — first classify the soil per ASTM D2487, then run Atterberg limits and Proctor compaction. Based on the results, we design the stabilizer dosage using either hydrated lime for high-plasticity clays or Portland cement for granular materials. The mix design always includes a 7-day cured CBR to confirm target strength before field application. This method has proven effective across Birmingham Alabama's variable terrain, from the Cahaba River floodplains to the rocky cuts of Red Mountain.

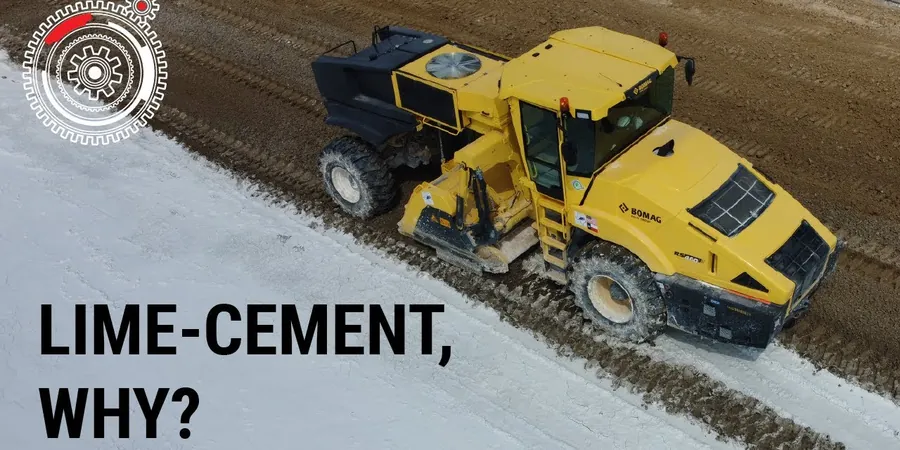

Technical reference image — Birmingham Alabama
Local considerations
A contractor in Irondale once tried to stabilize a fat clay subgrade with cement without running a sulfate test. Within six months, the road heaved and cracked from ettringite formation. That failure cost over $200,000 in repairs and delayed the subdivision opening by a full season. The risk is real: Birmingham Alabama's limestone-derived soils often contain soluble sulfates that react with calcium-based stabilizers. We always screen for sulfates before specifying the additive. If sulfate levels exceed 3,000 ppm, we shift to alternative methods like fly ash or granular replacement. Ignoring this step turns a cost-effective stabilization into a liability. Our laboratory protocol catches these problems before the first ton of lime hits the ground, saving clients both time and reputation.
Laboratory Mix Design for Lime-Cement Stabilization
Full characterization of the proposed subgrade or borrow soil, including gradation, Atterberg limits, pH, and sulfate content. We then formulate a stabilizer blend and verify performance through 7-day cured CBR tests and unconfined compressive strength. The final report specifies dosage, moisture target, and mellowing time.
02
Field Quality Control During Stabilization
On-site technicians monitor pulverization depth, stabilizer spread rate, moisture conditioning, and compaction density. We take nuclear gauge readings and check in-place CBR with a dynamic cone penetrometer. Daily reports keep the project team informed and provide traceability for warranty purposes.
What is the typical cost range for soil stabilization for roads in Birmingham Alabama?
For a typical road project in Birmingham Alabama, the cost for laboratory mix design and field quality control ranges between US$830 and US$3,070. The final price depends on the number of test sections, the depth of stabilization, and whether the soil requires sulfate screening. We provide a fixed quote after reviewing the project scope and soil samples.
How long does the laboratory mix design process take?
The standard turnaround is 10 to 14 business days from sample receipt. This includes curing time for the CBR specimens. Rush service with a 7-day turnaround is available for an additional fee if the project schedule is tight.
What soil types in Birmingham Alabama respond best to lime stabilization?
Soils with a plasticity index between 20 and 50 respond very well to lime. These are the residual clays common in the Red Mountain and Shades Valley areas. Very low-PI sands or gravels are better suited for cement stabilization. We always run a Eades & Grim pH test to confirm lime reactivity before proceeding.
Do you provide a warranty or performance guarantee for the stabilization design?
We guarantee the laboratory mix design meets the target CBR and PI values specified in the project documents. Field compliance with the design parameters is the contractor's responsibility. We provide full documentation for quality assurance, which helps contractors secure warranty terms from the owner or bonding agency.
