We recently worked on a four-story apartment building near the University of Alabama at Birmingham. The site had mixed fill layers over residual clay, so a soil mechanics study was critical to define allowable bearing capacity. We drilled five borings with SPT sampling at 1.5-meter intervals. This helped the structural team size the footings correctly. For projects on sloping lots in Red Mountain, we often combine this study with a falla taludesanalysis to check stability before excavation starts. In Birmingham Alabama, the soil profile varies from soft clays in the valley floors to weathered limestone in the ridges. A thorough soil mechanics study captures those variations and prevents surprises during construction.
A soil mechanics study in Birmingham Alabama prevents structural failures by identifying weak clays, fill zones, and variable bedrock before design is finalized.
Methodology and scope
We use a track-mounted drill rig with hollow-stem augers for the field phase. The rig reaches depths of 30 meters in Birmingham Alabama, which covers most foundation scenarios. Samples are taken with a split-spoon sampler per ASTM D1586-18. The lab work includes grain-size distribution, Atterberg limits, and natural moisture content. When we encounter high-plasticity clays, common around the Cahaba River floodplain, we run unconfined compression tests. For pavement design on commercial access roads, we add a CBR vial test. The entire process follows a standard workflow:
Field drilling and SPT sampling at each test depth
Sample preservation and transport to our lab
Classification per ASTM D2487 (USCS)
Strength and consolidation testing
Report with recommendations and foundation options
Every report we deliver for a soil mechanics study in Birmingham Alabama includes a site class per ASCE 7-22 and a liquefaction screening if groundwater is shallow.

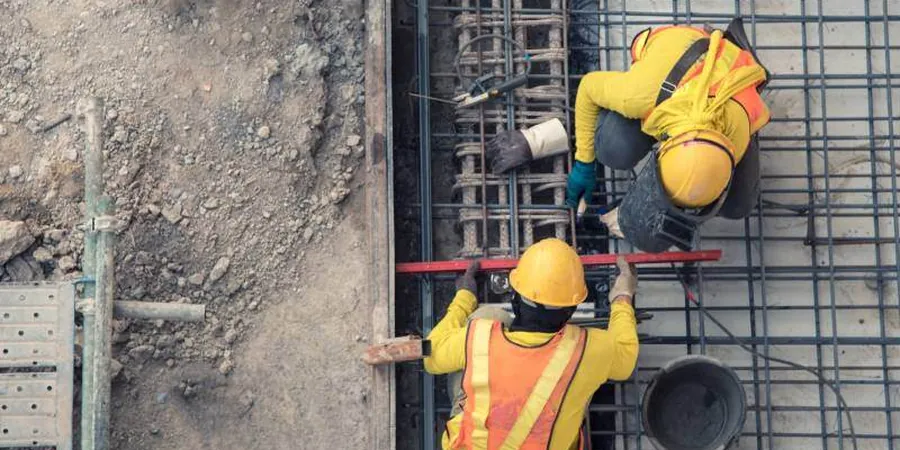

Technical reference image — Birmingham Alabama
Local considerations
IBC 2021 section 1803 requires a geotechnical investigation for most structures. In Birmingham Alabama, the main risk is shallow groundwater combined with high-plasticity clays. These clays swell when wet and shrink when dry, which can crack slabs and foundations. Our soil mechanics study always includes swell-consolidation tests on samples from the upper 3 meters. We also check for collapsible soils in areas where old mining pits were backfilled. The combination of variable fill and clay makes foundation design tricky. Without proper testing, differential settlement can exceed 5 centimeters in a few years. That is why we follow ASCE 7 and ASTM D4318 for every project in Birmingham Alabama.
We drill borings up to 30 meters deep with continuous SPT samples per ASTM D1586-18. This provides N-values and disturbed samples for classification.
02
Laboratory Classification and Strength Tests
We run grain-size, Atterberg limits, moisture content, and unconfined compression. For clay sites we add consolidation tests to predict settlement.
03
Foundation Recommendations Report
The final report includes bearing capacity, settlement estimates, site class per ASCE 7, and foundation options (spread footings, piles, or mat slabs).
Applicable standards
ASTM D1586-18 (Standard Test Method for SPT), ASTM D2487-17 (Unified Soil Classification System), ASCE 7-22 (Site Class and Seismic Parameters), IBC 2021 Section 1803 (Geotechnical Investigation), ASTM D4318-17 (Atterberg Limits)
Frequently asked questions
How much does a soil mechanics study cost in Birmingham Alabama?
The typical range is US$3,510 to US$4,840 for residential or small commercial projects. This includes 3 to 5 borings, laboratory tests, and a written report. Larger sites or deeper borings increase the cost.
What is the difference between N-SPT and bearing capacity?
N-SPT is the blow count measured during sampling. Bearing capacity is the maximum pressure the soil can support without failure. We correlate N-values to strength using empirical formulas (e.g., Terzaghi, Meyerhof) and then calculate allowable bearing capacity with a factor of safety.
Do I need a soil mechanics study for a small house addition in Birmingham Alabama?
Yes, if the addition is more than 20 square meters or involves a new foundation. Birmingham Alabama has variable clay and fill, so a shallow study with two borings is enough to avoid differential settlement cracks.
How long does the testing process take?
Field drilling takes one to two days. Laboratory testing adds another five to seven days. The full report is ready within two weeks from mobilization. We can expedite for urgent projects.
