The soil profile in downtown Birmingham’s Red Mountain district differs sharply from the alluvial deposits along the Cahaba River valley. On the ridge, residual clay overlies weathered limestone; near the floodplain, soft silt and clay sit on sand. That contrast makes slope failure analysis in Birmingham Alabama a site-specific task. We combine field reconnaissance with laboratory shear testing to model failure surfaces under saturated and dry conditions. Before any cut or fill starts, we run limit equilibrium back-calculations using Mohr-Coulomb parameters. For deeper slides we also integrate instrumentation geotecnica data to track pore pressure changes over time. The goal is simple: identify the critical slip surface before movement begins.
A slope that looks stable in dry weather can fail after 48 hours of continuous rain if the soil fabric contains pre-existing shear planes.
Methodology and scope
Birmingham sits at 600 feet above sea level, but its topography drops 200 feet in less than a mile across the Jones Valley. That relief creates natural and man-made slopes that demand careful slope failure analysis. We follow FHWA-NHI-05 procedures for circular and non-circular failure surfaces, and apply Spencer’s method for interslice force equilibrium. Our lab runs direct shear (ASTM D3080) and triaxial CU tests to obtain drained strength parameters. When we encounter residual soils from the Pottsville formation, we also check for slickensided surfaces that reduce friction angle. The results feed into a factor-of-safety calculation that meets IBC 2018 requirements for minimum 1.5 under static conditions.

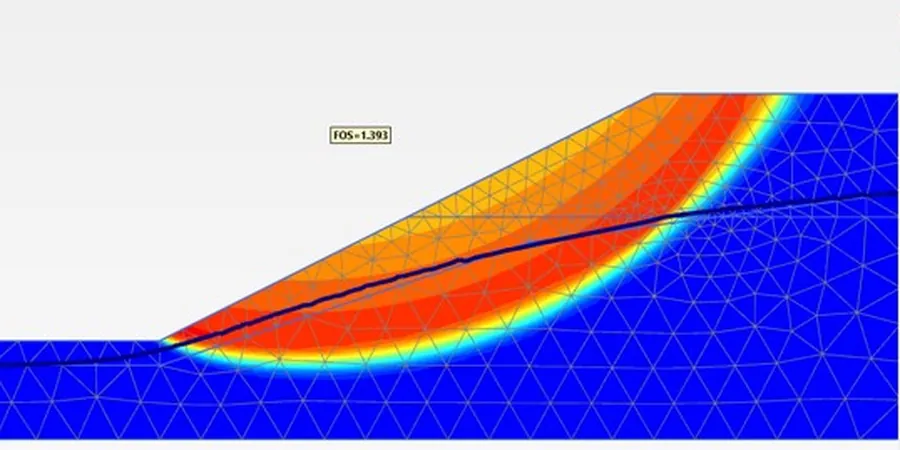

Technical reference image — Birmingham Alabama
Local considerations
We inspected a 40-foot cut slope on US-280 near the Cahaba River crossing last year. The contractor had benched the slope at 1.5:1, but after a week of spring storms a shallow wedge slid into the ditch. The cause was a clay seam at 12 feet depth that lost cohesion when pore pressure rose. That event could have been avoided with a proper slope failure analysis in Birmingham Alabama that included a perched water table check. In urban cuts near Vulcan Park, the risk increases when limestone solution cavities intersect bedding planes. We always recommend a sensitivity analysis for worst-case saturation scenarios.
Field mapping of tension cracks, scarps, and seepage zones. We classify the failure type (rotational, translational, wedge) and collect disturbed and undisturbed samples for lab testing.
02
Limit Equilibrium Modeling
We build 2D cross-sections using surveyed topography and borehole logs. Runs include Spencer, Bishop simplified, and Morgenstern-Price methods with user-defined slip surfaces.
03
Remediation Recommendations
Based on the FoS results we propose practical solutions: drainage blankets, soil nailing, or retaining walls. If needed we also evaluate buttress fills or lightweight backfill.
What causes slope failures in Birmingham Alabama most frequently?
The main triggers are prolonged rainfall that raises pore pressure in clay layers, and excavation that undercuts existing shear planes. Residual soils from the Ridge and Valley province often contain slickensided surfaces that reduce friction angle.
How much does a slope failure analysis cost in Birmingham Alabama?
Cost typically ranges between US$840 and US$2,300 depending on the number of sections modeled, the need for lab shear testing, and whether instrumentation is included. A single-cut analysis with two boreholes falls at the lower end.
What is the minimum factor of safety required for slopes in Birmingham?
The IBC 2018 requires a minimum static factor of safety of 1.5 for permanent slopes. Under seismic loading with ASCE 7-16, the threshold drops to 1.1. Local codes may impose stricter values for cuts near highways or occupied structures.
Do you use software for slope stability analysis?
Yes. We run Slide2 and SLOPE/W for limit equilibrium calculations, and Seep/W for transient pore pressure modeling. All models are calibrated with laboratory shear strength data from direct shear or triaxial tests.
