Birmingham Alabama sits in a region where the southern Appalachian foothills meet the Black Belt prairie, creating a mosaic of clay-rich residual soils over weathered limestone and sandstone. The city averages roughly 54 inches of rainfall annually, with intense spring and summer thunderstorms that can saturate the ground in hours. For road infrastructure, this means water must be moved away from the subgrade quickly and reliably. Our geotechnical road drainage designs focus on intercepting shallow groundwater flow and directing surface infiltration away from pavement layers, reducing the risk of pumping, rutting, and subgrade softening that plague many local highways and collector roads. Before the drainage system is finalized, we typically run a permeability field test to confirm hydraulic conductivity values across the site, ensuring the subsurface drainage elements are sized correctly for the actual soil conditions encountered in Birmingham Alabama.
In Birmingham Alabama, the clay-rich saprolite can hold water for weeks after a storm; a well-designed drainage system is the difference between a road that lasts 20 years and one that fails in five.
Methodology and scope
The weathered Piedmont saprolite common across Birmingham Alabama exhibits low hydraulic conductivity in its intact state, but secondary permeability along fractures and bedding planes can create preferential flow paths that undermine road shoulders unexpectedly. Our approach integrates trench drains, edge drains, and blanket drains with geotextile separators to prevent clogging from the region's fine silt fractions. We also assess the need for deep soil mixing in zones where the in-situ clay behaves plastically under repeated saturation, particularly along cut sections where the water table is perched above the pavement subbase. Each drainage layout follows the guidance of IBC Section 1805 and the Alabama Department of Transportation standard drawings, with drainage blankets specified at a minimum slope of 1.5% to ensure positive outflow even after long dry spells when the subgrade shrinks and cracks.

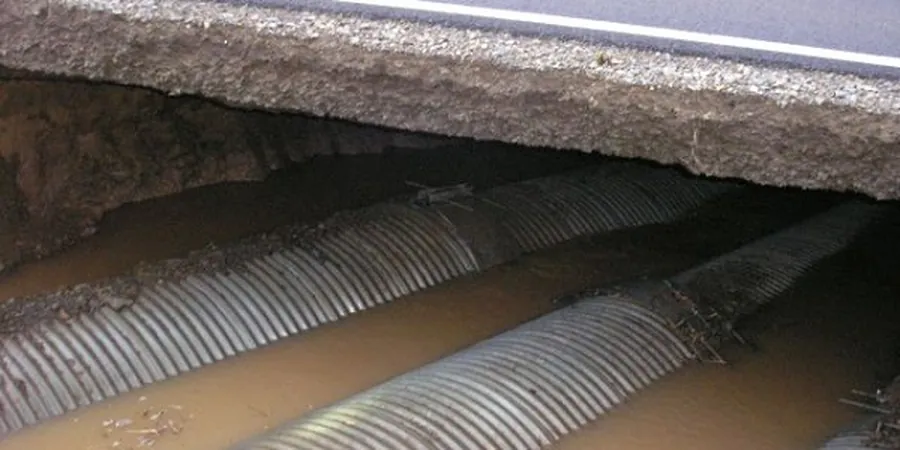

Technical reference image — Birmingham Alabama
Local considerations
Construction crews in Birmingham Alabama often encounter the weathered limestone cavities known locally as 'sinks' — solution features that can extend 20 feet below grade and act as natural drains or, conversely, as water traps that recharge the subgrade from below. A drainage system that fails to account for these features will short-circuit, with water bypassing the designed outlets and reemerging along the pavement edge. That is why our geotechnical investigation includes a careful review of karst indicators before the drainage layout is finalized. We also check for perched water tables in the upper 10 feet, a common condition along ridge-top road alignments in Birmingham Alabama where the clay cap sits on fractured rock. Ignoring these conditions leads to localized failures that require full-depth pavement repairs within the first few years of service.
Design of edge drains, trench drains, and blanket drainage layers sized for the local rainfall intensity and soil permeability. Includes geotextile selection, aggregate gradation specification, and outlet placement to ensure positive flow away from the pavement structure.
02
Groundwater Interception and Cut-Slope Drainage
Solutions for intercepting shallow groundwater along cut sections, including horizontal drains, chimney drains, and relief wells. Each design considers the perched water table common in Birmingham Alabama's saprolite and the potential for solution features in the underlying limestone.
Applicable standards
ASTM D1586 (Standard Test Method for SPT), AASHTO M 288 (Geotextile Specification for Highway Applications), FHWA HDS-4 (Hydraulic Design of Highway Culverts), IBC 2018, Section 1805 (Foundation Drainage and Subsurface Water Control)
Frequently asked questions
What is the typical cost range for a geotechnical road drainage study in Birmingham Alabama?
A standard drainage evaluation for a roadway project in Birmingham Alabama generally falls between US$950 and US$2,530, depending on the length of road, number of test pits or boreholes needed, and the complexity of the subsurface conditions. The final cost is confirmed after an initial site walk and review of existing geotechnical data.
How deep should edge drains be placed for a road in the Birmingham Alabama area?
Edge drains are typically placed 18 to 36 inches below the pavement subgrade, with the invert deep enough to intercept the seasonal high water table. In the clay-rich soils of Birmingham Alabama, we often set the drain 24 to 30 inches deep to capture the perched water that accumulates after heavy spring rains. The exact depth is determined from test pit observations and groundwater monitoring during the wet season.
What geotextile specification is recommended for road drainage in Birmingham Alabama?s clay soils?
For the fine silty clays common in Birmingham Alabama, we specify a nonwoven geotextile with an Apparent Opening Size (AOS) of 0.212 mm or finer, typically meeting AASHTO M 288 Class 2 requirements for subsurface drainage. This prevents soil migration into the aggregate while allowing adequate water flow. A geotextile with a permittivity of at least 0.1 s⁻¹ is recommended to handle the storm intensities typical of the region.
