Too many contractors in Birmingham Alabama assume that a stable slope at grading time will stay that way after a wet spring. We have seen cut faces on Red Mountain give way three months later because no one tracked the gradual rise in pore pressure. Monthly geotechnical slope monitoring catches that shift before it turns into a repair bill. We combine tiltmeters, inclinometers, and survey monuments to record changes in real elevation and lateral drift. That baseline data matters here because the residual soils over limestone can lose strength fast when saturated. Pairing this service with a falla-taludes analysis sharpens the picture of what is actually happening below grade.
A slope that moves 3 mm per month in Birmingham's clay shale is a red flag; we flag it before it becomes a slip.
Methodology and scope
The contrast between the sandy clays of the Coastal Plain and the weathered shale of the Valley and Ridge makes Birmingham Alabama a demanding place for slope work. In the eastern suburbs we often see high-plasticity soils that swell and shrink seasonally, while near the Cahaba River the alluvial deposits stay wet year round. Our monthly monitoring protocol covers both extremes: we record crack widths, inclinometer deflections, and standpipe readings at the same time each month to remove diurnal noise. For deep instability we correlate readings with a consolidation test run on undisturbed samples from the same borehole. The result is a trend line that tells us whether the slope is accelerating toward failure or holding steady.

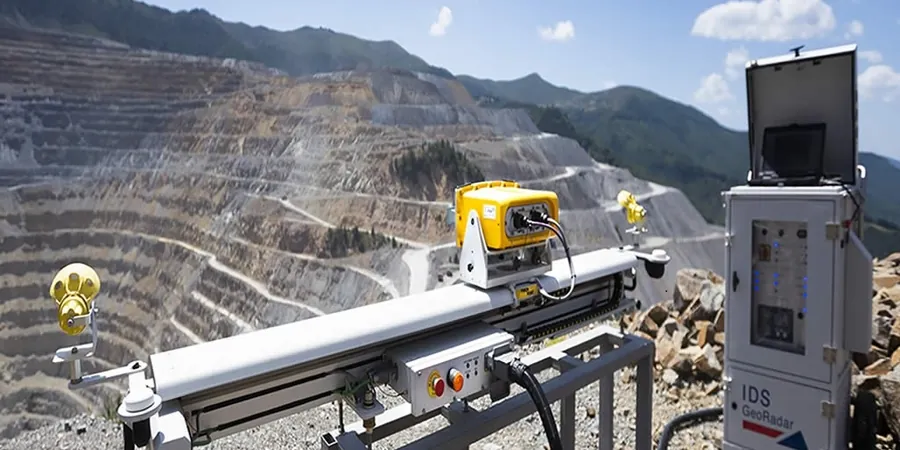

Technical reference image — Birmingham Alabama
Local considerations
Birmingham Alabama sits at the southern end of the Appalachian fold belt, and the area experienced a magnitude 4.9 earthquake in 1916 that triggered rock slides on Red Mountain. That same geological setting creates persistent bedding-plane weaknesses in the shale and sandstone layers that underpin many residential and commercial slopes. Without monthly monitoring a slow creep of 2 mm per month can go unnoticed until it accelerates during a wet winter cycle. We have documented cases where a slope that looked stable in October failed in March because progressive shear along a clay seam reduced the factor of safety below 1.1. Routine readings are the only way to see that decay coming.
Graph of cumulative displacement vs. time with rainfall overlay
Associated technical services
01
Surface monitoring package
Includes survey monuments, crack gauges, and visual inspection of erosion features. Data collected monthly and delivered as a displacement-time plot with rainfall data from the nearest NOAA station. Ideal for highway cuts and fill slopes with known low risk.
02
Deep monitoring package
Adds inclinometer casings and vibrating-wire piezometers to the surface setup. Boreholes are drilled to 1.5 times the estimated failure depth. Monthly logs include shear strain profiles and pore pressure trends. Recommended for slopes with previous movement or soft clay layers.
How long does a typical monthly monitoring program run in Birmingham Alabama?
Most programs run 12 to 24 months, covering at least one full wet-dry cycle. If the slope stabilizes after the first year we may reduce frequency to quarterly, but we keep the instruments in place for two more years.
What triggers an alert between monthly readings?
We set action thresholds based on the first two months of baseline data. If displacement exceeds 5 mm in a single event or pore pressure rises above 80% of overburden, we notify the engineer within 48 hours and schedule an extra reading.
Do you install monitoring equipment permanently or temporarily?
It depends on the site. Inclinometer casing and piezometers are left in place for the full monitoring period. Survey monuments are steel pins grouted into rock or concrete, intended to last years. We only remove them after the geotechnical engineer signs off on final stability.
What is the cost range for monthly slope monitoring in Birmingham Alabama?
For a typical slope with 3 to 5 instruments the monthly fee ranges between US$420 and US$1,310, depending on access difficulty and number of readings. Installation of inclinometer casing adds a one-time mobilization charge.
