Birmingham sits on a complex mix of residual soils from the Appalachian foothills and alluvial deposits along the Cahaba River, which means CBR values can vary dramatically within a single street block. The laboratory CBR test remains the standard method to assess subgrade strength for flexible pavement design here. By saturating and soaking compacted soil samples, we simulate worst-case moisture conditions—critical given Birmingham's average annual rainfall of 56 inches. The results directly support structural number calculations under AASHTO 1993 and help avoid premature rutting or fatigue cracking. For deeper site characterization, we often pair these tests with a placa de carga field plate load test to validate moduli before final pavement thickness decisions.
CBR values in Birmingham's clay subgrades often range from 2 to 8, requiring thick granular bases or chemical stabilization for heavy-traffic roads.
Methodology and scope
Birmingham's hot, humid summers and clay-rich soils like the weathered Conasauga Formation make moisture sensitivity a primary concern. The laboratory CBR test uses a standard 4-inch mold and a 10-lb hammer with 18-inch drop to compact specimens at optimum moisture content, then soaks them for 96 hours. We then measure penetration force with a 0.05 in/min piston rate. The key parameters we report include:
Soaked CBR at 0.1 in and 0.2 in penetration
Unsoaked CBR for comparison (common in dry-cut design)
Swell percentage after soaking
Moisture-density relationship from companion Proctor curves
This data feeds directly into pavement layer design, and for projects on marginal soils we recommend combining results with a geotecnia vial study to evaluate drainage and base reinforcement options.

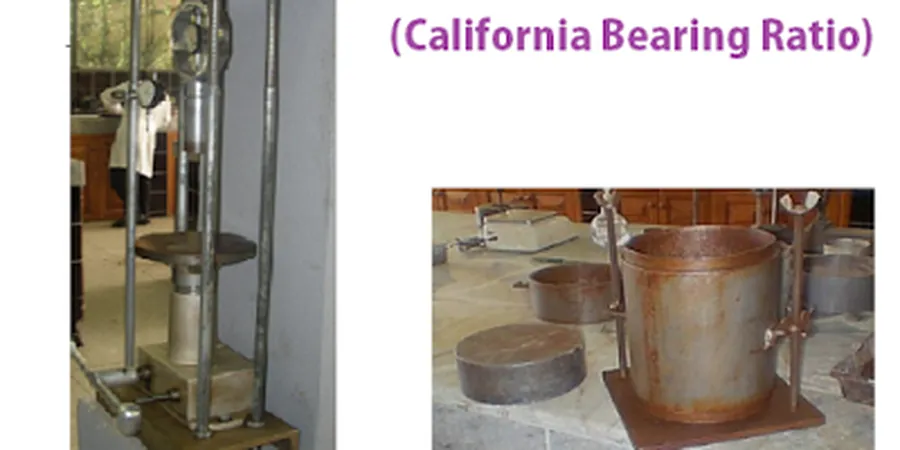

Technical reference image — Birmingham Alabama
Local considerations
The Piedmont and Ridge-and-Valley soils around Birmingham often contain high-plasticity clays that expand when wet. If the laboratory CBR test is performed on improperly compacted or non-representative samples, the resulting design may underestimate the subgrade's response to seasonal moisture changes. We have seen cases where a CBR of 6 in the lab dropped to 2 in the field after a wet spring, causing base course failure within two years. That is why our procedure always includes swell measurement and, when needed, repeated testing on remolded samples at different energy levels. For sites with known collapsible soils, we cross-check results with a suelos-colapsibles evaluation to avoid surprise settlement under pavement loads.
Standard Proctor (ASTM D698) or Modified (ASTM D1557)
Soaking period
96 hours (4 days) at room temperature
Penetration rate
0.05 in/min (1.27 mm/min)
Reported values
CBR at 0.1 in and 0.2 in, swell %
Sample size
4-inch diameter mold, 6-inch height
Surcharge weight
4.54 kg (10 lb) annular weights
Associated technical services
01
Standard CBR Test (Soaked & Unsoaked)
Complete CBR test per ASTM D1883 on compacted specimens, including swell measurement and moisture content. Ideal for flexible pavement design in residential streets and local roads.
02
CBR with Modified Proctor Compaction
For high-traffic pavements and airport runways, we use Modified Proctor energy (56,000 ft-lbf/ft³) to simulate denser subgrade conditions and obtain higher CBR values.
03
CBR + Proctor Combo
One combined service that delivers both the moisture-density curve (ASTM D698 or D1557) and the corresponding CBR value at optimum moisture. Saves time and ensures consistency.
04
Field CBR Verification
In-situ CBR testing using a dynamic cone penetrometer (DCP) to correlate with laboratory results. Useful for quality control during earthwork and to confirm design assumptions on site.
Applicable standards
ASTM D1883-21 Standard Test Method for CBR of Laboratory-Compacted Soils, AASHTO T193-21 Standard Method of Test for CBR, ASTM D698-12 Standard Proctor compaction (energy level 12,400 ft-lbf/ft³)
Frequently asked questions
What is the difference between soaked and unsoaked CBR?
Soaked CBR simulates worst-case moisture conditions by submerging the compacted specimen for 96 hours before testing. Unsoaked CBR tests the sample at its compaction moisture content. In Birmingham's wet climate, soaked values are typically 30-60% lower than unsoaked, so most design guidelines require soaked CBR for pavement thickness design.
How much does a laboratory CBR test cost in Birmingham?
For a standard soaked CBR test with one Proctor curve, the typical cost ranges between US$110 and US$210 per sample. Additional tests for multiple compaction energies or swell measurements may increase the price. Volume discounts are available for projects with 10 or more samples.
Can CBR be used for both flexible and rigid pavement design?
CBR is primarily used for flexible (asphalt) pavement design through the AASHTO 1993 structural number method. For rigid (concrete) pavements, the modulus of subgrade reaction (k-value) is more relevant, though some correlations exist between CBR and k. We recommend a plate load test for rigid pavement projects.
What CBR value is considered 'good' for subgrade in Birmingham?
In the Birmingham area, silty clay subgrades typically yield CBR values between 3 and 8. Values above 8 are considered good for low-volume roads, while values below 3 indicate weak subgrade requiring stabilization. Sandy soils along the Cahaba River valley may reach CBR 15-20, but these are less common.
