Birmingham's post-war industrial boom drove rapid construction on its rolling hills and creek valleys. The city's underlying geology — a mix of residual soils from weathered Paleozoic sedimentary rock and occasional alluvial deposits along Village Creek — creates complex bearing conditions. Early mills and warehouses often relied on shallow footings that later settled unevenly. Modern pile foundation design in Birmingham Alabama must account for these variable strata. Before specifying a deep foundation, engineers typically require a site-specific subsurface exploration using SPT borings to log soil stiffness and rock depth. A CPT profile can supplement that data with continuous tip resistance. For sites near Red Mountain where shallow rock is present, a presiometric test helps calibrate lateral modulus for pile groups.
Birmingham's residual soil profile can shift from stiff clay to weathered rock within 3 meters — pile design must anticipate that transition.
Methodology and scope
A common mistake in Birmingham Alabama is assuming the residual clay mantle extends uniformly. It does not. The decomposed sandstone and shale layers can vary in thickness by several feet over a single lot. A pile foundation design that ignores that variability risks differential settlement or refusal at unexpected depths. A competent design must integrate several steps:
Site classification per ASCE 7 based on Vs30 from MASW or SPT N-values
Axial capacity analysis using static formulas (α-method for cohesive layers, β-method for granular)
Group effect evaluation considering block failure and settlement interaction
Each step relies on data from the field investigation. Without a proper granulometry test and Atterberg limits, soil classification remains guesswork. The difference between a stiff clay and a sandy silt changes the side friction estimate by 40% or more.

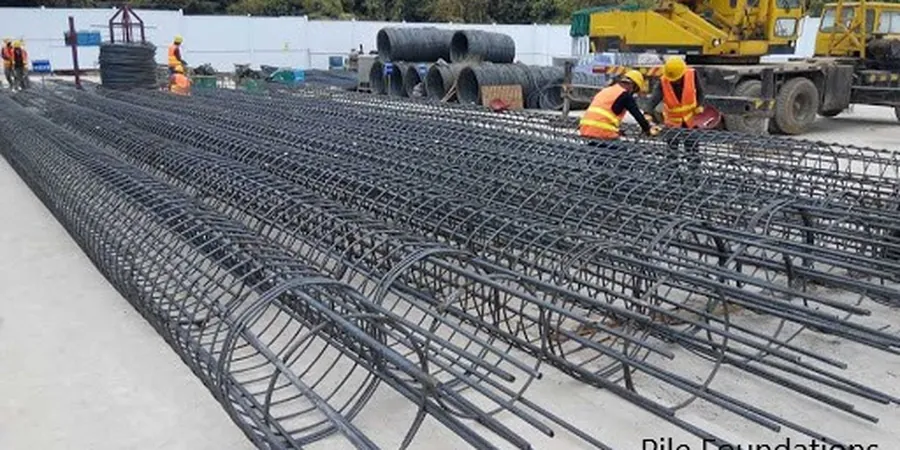

Technical reference image — Birmingham Alabama
Local considerations
Birmingham sits at an elevation of 600 feet above sea level, but its seismic hazard is non-trivial. The 2011 magnitude 5.8 Virginia earthquake shook buildings here. Pile foundation design in Birmingham Alabama must address liquefaction potential in loose alluvial sands along the Cahaba River floodplain and the Black Warrior River corridor. The NCEER (2001) method, using SPT-based cyclic resistance ratios, is the standard approach. A site with (N1)60 values below 15 in saturated sands requires mitigation — either deep piles to bypass the layer or ground improvement. Ignoring this risk leaves structures vulnerable to lateral spreading during a moderate seismic event.
10–50+ blows/ft; 30+ common in decomposed sandstone
Undrained shear strength (Su)
50–200 kPa in residual clays
End bearing capacity (rock)
5–15 MPa in sound limestone or sandstone
Shaft friction (α-method)
0.5–1.5 kPa per meter of embedment in clay
Associated technical services
01
Site Investigation & Soil Profiling
Boreholes with SPT, undisturbed tube sampling, and rock coring. Laboratory testing for classification, strength, and consolidation parameters. All work follows ASTM standards.
02
Pile Capacity Analysis & Design
Static and dynamic capacity calculations for driven piles, drilled shafts, and micropiles. Group efficiency, settlement, and negative skin friction evaluated per FHWA and ACI 543R guidelines.
03
Seismic & Liquefaction Assessment
Cyclic resistance ratio evaluation using SPT-based methods. Site response analysis for deep soil profiles. Recommendations for pile embedment depths to mitigate lateral spreading.
Applicable standards
ASCE 7-22 Minimum Design Loads for Buildings (site class criteria), IBC 2021 Chapter 18 — Soils and Foundations, ASTM D1586-18 Standard Test Method for SPT, FHWA-NHI-16-009 — Design and Construction of Driven Pile Foundations
Frequently asked questions
What soil conditions in Birmingham Alabama require pile foundations?
Pile foundations are needed where shallow soils lack bearing capacity — typically residual clays with SPT N-values below 10, or loose alluvial sands. Sites with shallow rock (within 15 feet) can use drilled shafts instead of driven piles.
What is the typical pile capacity range for Birmingham projects?
For an 18-inch diameter concrete pile embedded 40 feet into stiff clay, allowable axial capacity typically ranges from 150 to 350 kips. In weathered rock, capacities can exceed 500 kips.
How does pile foundation design differ from shallow foundation design in Birmingham Alabama?
Shallow foundations spread load at the surface; piles transfer load to deeper competent strata. In Birmingham's variable Piedmont soils, piles bypass the low-strength upper clay and reach rock or dense sand. Settlement control is also tighter with piles.
What is the cost range for a pile foundation design study in Birmingham Alabama?
A typical design study — including field investigation, laboratory testing, and engineering analysis — ranges from US$1.620 to US$6.580 depending on site complexity and number of borings.
