We run the Standard Penetration Test in Birmingham Alabama using a 63.5-kg automatic trip hammer dropped 760 mm on a 50-mm split-barrel sampler. The drill rig we mobilize is a CME 75 or Diedrich D-50, both common on projects here because they handle the steep topography around Red Mountain without requiring extensive staging areas. Each test records blow counts per 150-mm increment to produce N-value profiles that feed directly into bearing capacity and settlement analysis. Before mobilizing equipment we check site access and utility clearance — something that matters in older neighborhoods near Five Points South where buried lines are not always documented. The method follows ASTM D1586-18 strictly, and we record energy efficiency of the hammer system to ensure the N-values are transferable to local design practice.
SPT N-values in Birmingham vary from 4 to 12 in residual clays and exceed 40 in weathered rock — a range that demands site-specific testing for every project.
Methodology and scope
Birmingham sits at about 600 ft elevation on the southern edge of the Appalachian Ridge and Valley province, which means the soil profile transitions quickly from residual clay over limestone to weathered shale and sandstone within a single block. That variability demands frequent SPT sampling — we typically run tests every 1.5 m vertically and stagger them horizontally to capture lenses of loose sand or soft clay that could cause differential settlement. The local standard penetration test data we produce supports not only shallow foundation design but also cimentaciones sísmicas where site class determination per ASCE 7 requires shear-wave velocity correlation from N-values. For projects near the Cahaba River floodplain we combine SPT with soil sampling for suelos colapsibles identification, since collapsible soils are a known risk in that corridor. Each test includes recovery of the sampler's soil column for visual classification using ASTM D2487, and we photograph the sample for the project record. At depths exceeding 15 m we switch to wireline coring for rock sockets, but the SPT remains the primary tool for the upper 45 ft of overburden that controls most residential and light commercial foundation behavior.

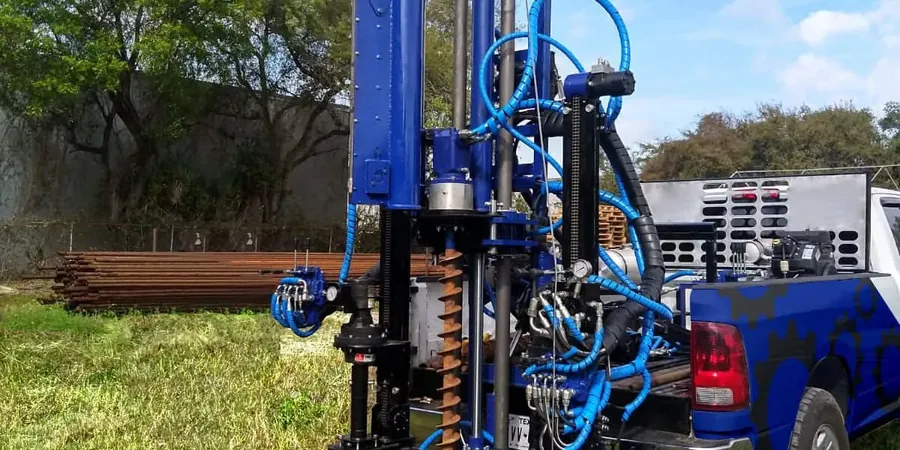

Technical reference image — Birmingham Alabama
Local considerations
Birmingham grew rapidly in the late 19th century around iron and steel, and much of the industrial corridor along the Jones Valley was built on uncontrolled fill over alluvial deposits. The Standard Penetration Test in Birmingham Alabama is essential here because these fills are notoriously heterogeneous: one borehole may show N=3 in coal ash and another N=18 in compacted slag 20 m away. Without systematic SPT sampling, a foundation designed for the high end of that range could settle 5 cm or more when it hits the low end. We have seen projects in the Avondale area where old railroad ballast and demolition debris create perched water conditions that alter SPT results — we flag these anomalies immediately so the geotechnical engineer can adjust the design profile. The risk is not just settlement; loose saturated sands in the Cahaba floodplain can liquefy under seismic loading, and only SPT-derived N-values provide the input needed for the simplified liquefaction evaluation per Youd-Idriss.
Full SPT profiling per ASTM D1586 with automatic trip hammer, split-barrel sampling, and N-value reporting at 1.5-m intervals. Includes soil classification photographs and digital log sheets.
02
SPT with Energy Calibration
Energy efficiency measurement using a strain-gage instrumented rod to verify hammer delivery exceeds 60% efficiency. Essential for projects requiring reliable N-value correlation with shear-wave velocity or liquefaction analysis.
03
SPT Sampling for Lab Testing
Undisturbed split-barrel samples recovered for moisture content, Atterberg limits, and grain-size distribution. Samples are sealed and transported to our accredited lab within 24 hours.
Applicable standards
ASTM D1586-18 (Standard Test Method for SPT), ASCE 7-22 (Site Class determination via N-values), AASHTO T-206 (Standard Method of Test for SPT), ASTM D2487-17 (Visual manual soil classification)
Frequently asked questions
What is the cost of an SPT in Birmingham Alabama?
Our standard rate for SPT in Birmingham Alabama ranges from US$620 to US$690 per test, including mobilization within 15 miles of downtown. Additional charges apply for depths beyond 15 m, weekend access, or multiple setups on steep slopes. The final cost depends on borehole count and site conditions — we provide a fixed-price quote after a quick site review.
How many SPT boreholes do I need for a residential lot in Birmingham?
For a typical single-family lot on residual clay over limestone, we recommend at least two SPT boreholes to 6 m depth. If the lot is on fill or near the Cahaba floodplain, we increase to three boreholes and extend them to 9 m to check for collapsible soils. The local building department often follows IBC minimums, but we advise designing based on the lowest N-value profile, not the average.
Can SPT data be used for liquefaction assessment in Birmingham?
Yes — SPT N-values are the primary input for the simplified liquefaction evaluation method published by Youd and Idriss (2001). In Birmingham, the Cahaba River floodplain and areas with loose sandy fills (N < 10) are the main zones of concern. We combine the N-value profile with the site's peak ground acceleration per ASCE 7 hazard maps to compute the factor of safety against liquefaction. If the factor is below 1.2, we recommend further analysis with cyclic triaxial testing.
