A five-story medical office building near UAB’s campus needed a foundation that could handle 200 kip column loads while threading through shallow karst limestone. The geotechnical team evaluated several deep foundation options, but the tight headroom under an existing parking deck ruled out driven piles. A micropile design turned out to be the practical answer. Each pile was drilled through the weathered rock zone and socketed into competent limestone, then grouted under pressure to develop bond capacity. Before finalizing the layout, the team ran a series of standard penetration tests to map the rock profile across the site, which helped refine the pile depths and confirm that end-bearing resistance would meet the structural requirements.
In karst terrain the grout take can vary by 300 percent across a single site, so a staged injection program is essential.
Methodology and scope
Birmingham Alabama grew rapidly during the post-war industrial boom, and many of its older structures were built on shallow spread footings that now need underpinning for new loads. The city sits on the Birmingham Anticlinorium, where Paleozoic sedimentary rocks create a variable weathered zone that can be 5 to 30 feet thick depending on the block. Micropile design in this context requires careful evaluation of the rock-socket bond length and the grout-to-ground interface. Engineers typically follow IBC 2021 Section 1810 and reference FHWA-HIF-07-039 for drilled micropile capacity. The team combines this with georadar surveys to detect solution cavities before drilling, which avoids costly surprises when the grout takes unexpectedly.

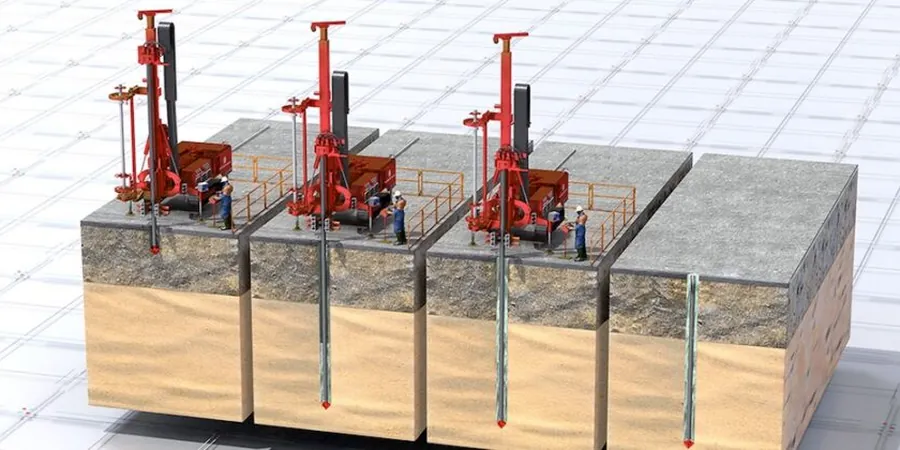

Technical reference image — Birmingham Alabama
Local considerations
The humid subtropical climate of the southeastern U.S. means Birmingham Alabama sees an average of 56 inches of rainfall per year, which can cause perched water tables in the weathered zone above the rock. If a micropile is grouted during or after a heavy rain, the water can dilute the cement paste and reduce bond strength. The bigger risk is solution cavities: voids in the limestone that can cause a pile to lose skin friction if not identified beforehand. Using a permeability test in boreholes before grouting helps the team decide whether to pre-grout the cavity or increase the socket length to bypass it entirely.
We tailor the pile spacing and socket depth to the local rock profile, using data from boreholes and geophysics to avoid solution cavities and optimize load transfer.
02
Grout Mix Design & Injection Control
A staged grouting program with pressure monitoring ensures consistent bond development, especially in zones where the weathered rock thickness varies.
03
Structural Load Testing (ASTM D1143)
Compression and tension tests on sacrificial piles verify that the design assumptions match the actual rock-socket behavior before production piles begin.
04
Corrosion Protection Specification
For aggressive soil conditions, we specify galvanized or epoxy-coated reinforcement and calculate sacrificial steel thickness per IBC 2021 for the design life.
How does micropile design differ in karst limestone versus uniform clay?
In karst limestone the rock surface is irregular and solution cavities can reduce side friction significantly. The design relies more on rock-socket bond length and verification with load testing, whereas in clay the capacity is dominated by skin friction along the full pile length.
What typical load range can a micropile support in Birmingham Alabama?
Micropiles in the Birmingham area are typically designed for 100 to 300 kips per pile, depending on the rock quality and socket length. Higher capacities are possible with larger diameters or deeper sockets but require a site-specific load test.
How much does micropile design and installation cost per pile?
The typical range for a complete micropile in Birmingham Alabama is between US$1.610 and US$5.170 per pile, including drilling, grouting, reinforcement, and basic load testing. The exact cost depends on depth, rock conditions, and access constraints.
What is the minimum rock-socket length required for a 100-kip micropile?
For a 100-kip design load in the limestone of the Birmingham Anticlinorium, a minimum rock-socket of 8 to 12 feet is typical, assuming a bond stress of 80 to 120 psi and a 7-inch or larger pile diameter. The final length is verified during the test pile program.
Can micropiles be used for underpinning existing structures in Birmingham Alabama?
Yes, micropiles are frequently used for underpinning because they can be installed with low headroom and minimal vibration. In Birmingham, they are common for adding stories to existing buildings or stabilizing foundations affected by settlement in the weathered zone.
