Many construction teams in Birmingham Alabama assume that visual inspection of a cut slope or foundation excavation is enough to guarantee long-term stability. That assumption has led to costly overruns when unseen soil movement or pore pressure build-up went undetected until damage appeared. Geotechnical instrumentation provides the continuous data needed to verify design assumptions during and after construction. Without it, the gap between calculated behavior and actual ground response remains a blind spot. Birmingham's variable geology, with its mix of residual soils over fractured limestone, demands systematic monitoring. Installing the right sensors before ground disturbance starts is the only way to capture baseline conditions and track changes accurately.
Without baseline data from geotechnical instrumentation, the gap between calculated behavior and actual ground response remains a blind spot.
Methodology and scope
Birmingham Alabama sits within the Valley and Ridge province, where folded sedimentary rock creates abrupt changes in soil depth and groundwater conditions. This setting directly affects how geotechnical instrumentation must be designed and placed. Shallow bedrock near Red Mountain means inclinometer casings may need to be socketed into rock to prevent displacement at the toe. On the other hand, deep alluvial deposits along the Cahaba River Valley require longer piezometer screens and careful filter pack selection. A typical instrumentation plan in Birmingham combines vibrating-wire piezometers for pore pressure monitoring, in-place inclinometers for lateral movement, and surface settlement points. Each sensor location must be tied to the project's critical failure modes. Before installation, we always correlate instrument placement with borehole information from a complementary ensayo SPT to confirm soil strata boundaries and adjust depths accordingly.

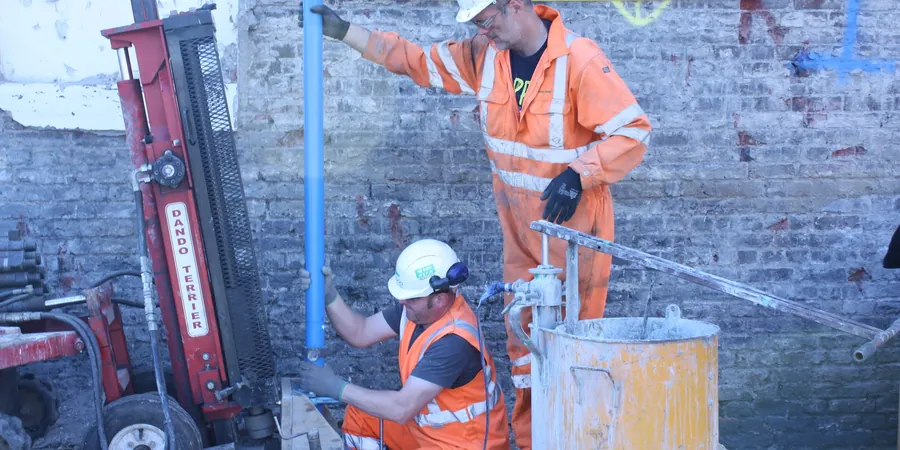

Technical reference image — Birmingham Alabama
Local considerations
In Birmingham Alabama, a common oversight is installing instrumentation after excavation begins rather than before. Once the cut is open, drilling for inclinometer casings or running piezometer cables near active equipment introduces safety hazards and compromises data quality from vibration-induced noise. Another frequent issue is ignoring the seasonal water table fluctuation that can reach 3 meters in the Black Warrior River floodplain. Piezometers placed at static water level during dry months become useless when the table rises. We also see projects where surface settlement points are too few or placed on disturbed fill that settles independently of the natural ground. Geotechnical instrumentation must be designed for the full construction sequence, not just the final condition.
HDPE conduit with sand-cement backfill at surface crossings
Associated technical services
01
Instrumentation Design and Sensor Selection
We develop a site-specific instrumentation plan based on subsurface conditions, project geometry, and anticipated failure mechanisms. This includes specifying inclinometer locations, piezometer depths, settlement monitoring arrays, and automated data logging systems. Each design references the relevant ASTM or FHWA standard and includes a trigger action response plan (TARP) to define alert thresholds.
02
Field Installation and Baseline Data Collection
Our crews install inclinometer casings, vibrating-wire piezometers, and surface monuments using methods that minimize soil disturbance. We take baseline readings immediately after installation and repeat them at intervals defined in the monitoring plan. Real-time data transmission is available for critical projects. Reports include raw readings, calculated displacements or pressures, and trend analysis with comparison to design limits.
Applicable standards
ASTM D6230-21 (Inclinometer monitoring), ASTM D4750-21 (Piezometer installation and testing), FHWA NHI-05-037 (Instrumentation for slope stability), IBC 2021 Chapter 17 (Structural tests and inspections)
Frequently asked questions
What types of geotechnical instrumentation are most common in Birmingham projects?
Inclinometers for lateral movement, vibrating-wire piezometers for pore pressure, and surface settlement points are the most frequent choices. For deep excavations or tunnels, we also install crack gauges on adjacent structures and strain gauges on soldier piles. The mix depends on the project type and the predominant soil or rock conditions on site.
How much does geotechnical instrumentation design and installation cost in Birmingham Alabama?
Typical project costs range between US$2,410 and US$4,510 depending on the number of sensors, data logger type, and monitoring duration. A basic plan with three inclinometers and five piezometers including six months of weekly readings falls near the lower end. Larger arrays with real-time telemetry push toward the upper range.
How long does it take to install instrumentation and start getting useful data?
Installation for a typical set of inclinometers and piezometers takes one to three days depending on drilling access and weather. Baseline readings are collected within 24 hours of installation. Automated loggers can begin transmitting data immediately. Manual surveys for settlement points require a stable benchmark and at least two consecutive readings to confirm precision.
