In Birmingham Alabama, the geology under the city varies significantly from the Ridge and Valley limestone in the south to the softer Coastal Plain sediments toward the northeast. When you find yourself dealing with deep deposits of plastic clay or silty soils near the Cahaba River floodplain, standard settlement timelines can stretch into years. That is where prefabricated vertical drain design becomes a practical tool to accelerate consolidation under preload. Our team works with local contractors to determine the right drain spacing, mandrel size, and installation pattern so that the embankment or foundation load achieves the required strength within the project schedule. Before specifying the drain layout, we cross-check the soil stratification with a [MASW survey](/masw-vs30/) to map the soft layer thickness without drilling multiple borings.
In soft clay deposits over 10 meters thick, PVDs can reduce primary consolidation time from years to a few months.
Methodology and scope
A typical scenario we see in Birmingham Alabama involves a warehouse slab or highway approach embankment over 10 to 15 meters of soft clay with natural moisture content above 40 percent. The design of prefabricated vertical drains here requires knowing the coefficient of consolidation in the horizontal direction (Ch), which is often 2 to 4 times the vertical value due to sand lenses. We calculate the drain spacing using Hansbo's solution, then verify with a field permeability test to confirm the in-situ drainage behavior. The installation process uses a steel mandrel pushed hydraulically into the ground; we specify the minimum mandrel cross-section to avoid soil disturbance that reduces drain efficiency. Each drain is anchored at the bottom with a steel plate and connected to a sand blanket or geocomposite drainage layer at the surface to carry the expelled pore water away.

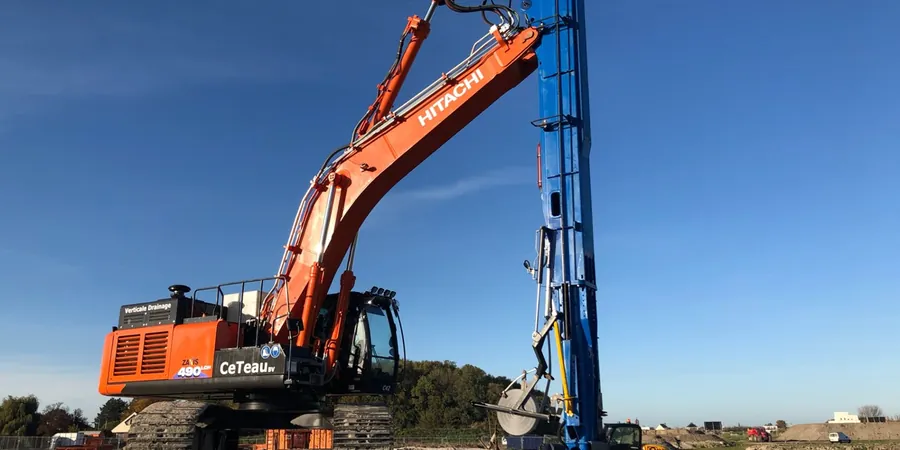

Technical reference image — Birmingham Alabama
Local considerations
The urban development of Birmingham Alabama expanded rapidly during the post-war industrial boom, often building over poorly drained alluvial valleys and old mine tailings from iron ore extraction. Those areas now carry structures that experience differential settlement when the subsoil consolidates unevenly. The main risk with omitting or misdesigning prefabricated vertical drains is that secondary compression in the deep plastic clays continues for decades, leading to cracked pavements, tilted slabs, and broken utility lines. We always include a smear zone correction factor in the drain spacing calculation because the installation mandrel creates a remolded zone around each drain that reduces the effective drainage radius. If the soil profile contains thin sand seams, we adjust the design to avoid short-circuiting the drainage path.
Boreholes with undisturbed sampling, field vane shear tests, and laboratory consolidation tests to obtain Ch, Cv, and preconsolidation pressure.
02
PVD spacing and layout design
Calculation of drain spacing, depth, and pattern (square or triangular) using Hansbo's method and Barron's theory, with smear and well resistance factors.
03
Installation supervision and QA/QC
On-site inspection of mandrel driving, drain alignment, and connection to the drainage blanket. Verification of discharge capacity on sampled drains.
04
Settlement monitoring and back-analysis
Installation of settlement plates, piezometers, and inclinometers to verify consolidation rate and adjust the design if needed during construction.
Applicable standards
ASTM D6918-18 (Standard Test Method for Properties of Prefabricated Vertical Drains), FHWA NHI-12-039 (Design and Construction of PVDs), Eurocode 7 (EN 1997-1:2004) Section 8.6
Frequently asked questions
How long does it take for PVDs to consolidate soft clay in Birmingham Alabama?
For a typical 12-meter clay layer with a Ch of 8 m²/yr and drains spaced 2.0 meters apart in a square pattern, primary consolidation under a 50-kPa surcharge reaches 90 percent in approximately 4 to 6 months. Without drains, the same layer would take over 8 years.
What is the typical cost range for a PVD design study in Birmingham Alabama?
The cost for a complete prefabricated vertical drain design study, including field testing, laboratory consolidation tests, and the design report, ranges between US$880 and US$2,700. The final price depends on the number of borings, the depth of soft soil, and whether additional tests like MASW or CPT are needed.
Can PVDs be used in the rocky or karst areas of Birmingham Alabama?
PVDs are only effective in soft, compressible soils. In the southern part of Birmingham Alabama where limestone bedrock is close to the surface or solution cavities exist, drains cannot be installed because the mandrel would break or the drain would be cut by rock fragments. A different ground improvement method like stone columns would be more appropriate there.
What is the difference between a band drain and a wick drain in PVD design?
Both terms refer to the same product. Band drain and wick drain are interchangeable names for prefabricated vertical drains. The core is a plastic channel wrapped in a geotextile filter. The key design parameter is the discharge capacity, which must be at least 100 cm³/s under a confining pressure of 1 MPa to avoid clogging in soft clays.
