Retaining wall design in Birmingham Alabama must comply with IBC Chapter 18 and AASHTO LRFD Section 11 for earth-retaining structures. The city's Piedmont geology, dominated by residual soils from weathered granite and gneiss, creates a highly variable bearing profile. Before finalizing any wall geometry, a thorough subsurface investigation is essential. Combining test pit logging with a CPT sounding helps map soil stratification, while laboratory index tests such as Atterberg limits identify shrink-swell potential in clay-rich horizons. These inputs directly inform lateral earth pressure coefficients used in the design. Birmingham's frost depth of about 12 inches is shallower than northern cities, but the high clay content in many neighborhoods demands careful drainage planning behind the wall.
In Birmingham's Piedmont soils, the difference between a stable wall and a leaning one often comes down to how well you characterized the residual clay layer.
Methodology and scope
Birmingham sits at the boundary between the Cumberland Plateau and the Piedmont, so soil conditions shift dramatically within a few miles. In the Valley area near Red Mountain, limestone bedrock may lie at 10 feet, while in the Cahaba River floodplain, soft alluvial clays extend beyond 30 feet. Retaining wall design in Birmingham Alabama must account for these lateral variations. A wall on 40-foot-deep residual clay behaves very differently from one founded on shallow rock. We evaluate active and passive pressures using Rankine or Coulomb theory, then check sliding, overturning, and bearing capacity per IBC load combinations. For walls taller than 6 feet, we recommend a seismic check per ASCE 7-16 even though Birmingham is in Seismic Design Category B — the site soil class can amplify ground motion. Drainage is another critical element: we specify perforated pipe and granular backfill to prevent hydrostatic buildup. For projects on steep slopes, we integrate slope stability analysis to ensure the wall does not trigger a global failure surface.

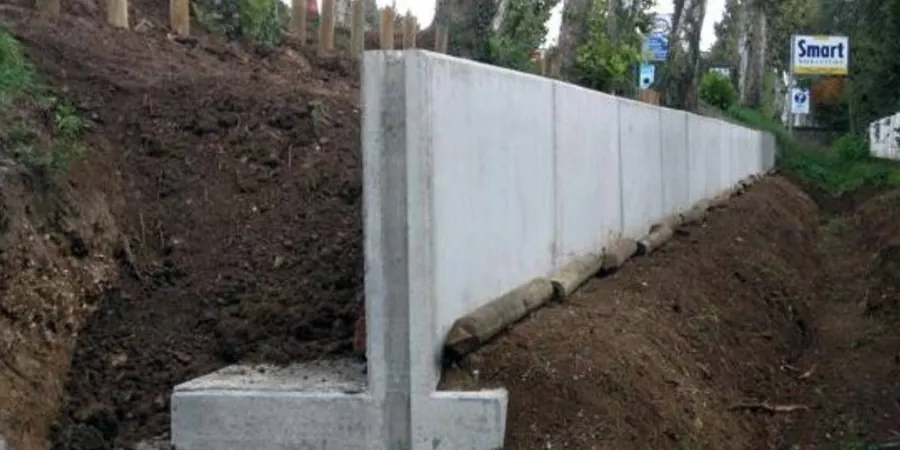

Technical reference image — Birmingham Alabama
Local considerations
A retaining wall built in Mountain Brook on residual clay may perform well, while the same design in the Five Points South area on old fill could fail within two years. The fundamental risk in retaining wall design in Birmingham Alabama is underestimating the lateral pressure from expansive clay. These soils gain strength when dry but swell when wet, effectively doubling the horizontal thrust against the wall. Another common failure mode is inadequate drainage — clogged weep holes turn the wall into a dam. We always model at least two scenarios: short-term (undrained) with saturated clay and long-term (drained) after pore pressures dissipate. The cost of a failed wall — repair, litigation, neighbor disputes — far exceeds the upfront geotechnical work.
Borings or test pits to 1.5 times the wall height, SPT sampling every 5 feet, and laboratory testing (moisture content, Atterberg limits, direct shear) to classify soil and determine strength parameters. Includes a site-specific seismic site class per ASCE 7.
02
Structural Wall Design & Detailing
Complete design of cantilevered, gravity, or MSE walls using LRFD methodology. We size the footing, check sliding and overturning, specify reinforcement for crack control, and detail drainage outlets. Deliverables include signed calculations and construction-ready drawings.
03
Construction Observation & Testing
On-site verification of backfill compaction (per ASTM D698), drainage installation, and concrete strength. We provide daily reports and a final certification that the wall meets the design intent and applicable code requirements.
Applicable standards
IBC 2021 Chapter 18 – Soils and Foundations, AASHTO LRFD Bridge Design Specifications Section 11, ASCE 7-16 Minimum Design Loads for Buildings, ASTM D4318 – Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils
Frequently asked questions
How deep should a retaining wall footing be in Birmingham Alabama?
Footings must extend below the frost line, which is approximately 12 inches in Birmingham. However, in areas with expansive clay, we often recommend a minimum depth of 24 inches to reach a more stable moisture zone. The final depth depends on the soil-bearing capacity and the wall height.
What type of retaining wall is best for Birmingham's clay soils?
Cantilevered reinforced concrete walls with a wide base are common because they distribute bearing pressure over a larger area. For walls under 4 feet, segmental block walls with geogrid reinforcement work well if the backfill is properly drained. In all cases, a geotechnical report is necessary to determine the appropriate wall type.
Do I need a permit for a retaining wall in Birmingham?
Yes, any retaining wall over 4 feet in height requires a building permit from the City of Birmingham or the applicable municipality. The permit application must include engineered plans, a soils report, and calculations sealed by a professional engineer licensed in Alabama.
How much does retaining wall design cost in Birmingham Alabama?
Typical geotechnical investigation and design fees range from US$1,000 to US$4,270, depending on wall height, soil complexity, and site access. This includes borings, lab testing, and a sealed design report. Construction costs are separate and vary by wall type and length.
