Birmingham Alabama sits on the Ridge and Valley province, where alternating layers of sandstone, limestone, and shale create complex foundation conditions. The city's hot humid summers drive deep seasonal moisture changes in the upper clay crust. This affects pile shaft resistance more than base resistance. When we analyze pile skin friction vs. end bearing in Birmingham Alabama, we first run borehole logging with SPT to map each stratum. Then we separate frictional contribution from cohesive clays and end-bearing capacity on weathered bedrock. The contrast between the two mechanisms is critical here because the soil profile can shift from soft residual clay to hard rock within a few meters.
In Birmingham Alabama, skin friction often governs pile capacity in the upper 10 meters, while end bearing dominates only after tip reaches competent rock.
Methodology and scope
Birmingham Alabama averages 1,360 mm of rainfall per year, which keeps the upper soil mantle saturated for long periods. Saturated clays develop negative pore pressure during driving, reducing effective stress and skin friction temporarily. Our analysis quantifies this using effective stress methods after Skempton. We also perform direct shear testing on undisturbed samples to capture remolded strength along the pile shaft.
Skin friction calculated via alpha and beta methods per FHWA procedures
End bearing estimated from N-values corrected for overburden using Liao & Whitman formula
Bedrock coring required when refusal occurs before design tip elevation
The combination of these methods gives a reliable working load for driven piles in Birmingham Alabama.

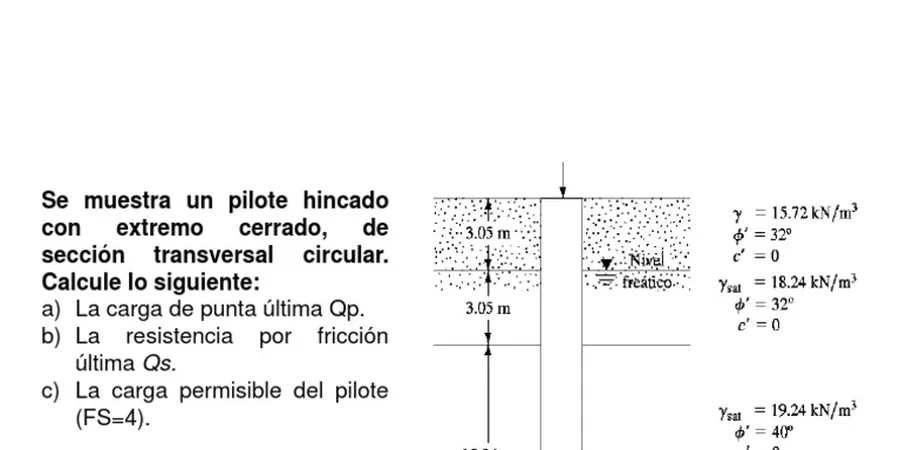

Technical reference image — Birmingham Alabama
Local considerations
A 15-story apartment tower near the Vulcan Park ridge needed driven piles to reach competent limestone at 22 meters. The contractor assumed end bearing would provide 80% of capacity. After our pile skin friction vs. end bearing analysis, we found that the upper clay layers contributed 65% of the total shaft resistance. Ignoring that frictional component would have required deeper piles and longer driving times. The risk of over-relying on end bearing alone is real in Birmingham Alabama, where the bedrock surface can dip unpredictably across a single site.
Continuous sampling with SPT at 1.5 m intervals to N-value refusal. We log every blow count and recover split-spoon samples for lab classification.
02
Laboratory Shear Testing
Direct shear and triaxial tests on cohesive samples to determine undrained shear strength for alpha-method skin friction calculations.
03
Bedrock Coring and RQD
When SPT refusal occurs above design tip, we switch to NQ-size coring. Rock Quality Designation and unconfined compressive strength feed the end bearing equation.
Applicable standards
IBC 2021 Chapter 18 (Soils and Foundations), ASTM D1586-18 (Standard Test Method for SPT), FHWA-NHI-16-009 (Design and Construction of Driven Pile Foundations)
Frequently asked questions
How does the pile skin friction vs. end bearing analysis differ between clay and rock in Birmingham Alabama?
In clay layers, skin friction is calculated using undrained shear strength (Su) times an alpha factor between 0.4 and 0.8. In rock, end bearing uses unconfined compressive strength (qu) divided by a factor of 5–10. The transition occurs where N-values exceed 50 blows per 300 mm.
What is the typical cost range for this analysis in Birmingham Alabama?
The cost range is between US$1,200 and US$2,960 depending on borehole depth, number of SPT tests, and whether rock coring is required. This includes field work, lab testing, and a written report with capacity calculations.
Which IBC provisions apply to pile skin friction vs. end bearing design?
IBC 2021 Section 1808 covers general foundation requirements, while Section 1810 addresses deep foundations specifically. Table 1806.2 provides allowable unit stresses for piles. Our analysis follows the static load test method in Section 1810.3.3.
How do seasonal moisture changes affect skin friction in Birmingham Alabama clay?
Birmingham's clay soils shrink and swell with seasonal rainfall. During dry summer months, negative pore pressure can increase effective stress and temporarily raise skin friction. Our analysis uses the dry-side shear strength to be conservative for long-term capacity.
