The drilling rig sits steady on the red clay, its hollow stem auger biting into the ancient alluvial deposits. In Birmingham, Alabama, the ground tells a story. The Cahaba River and Village Creek have carved valleys filled with soft, compressible clays, silts, and sand lenses. These are the materials that challenge tunnel engineers daily. A drilling crew in this city knows the drill: you hit stiff clay, then a sand pocket, then back to clay. For any underground project, from sewer interceptors to road tunnels, the first step is a thorough geotechnical analysis for soft soil tunnels. This analysis must map the variable stratigraphy and measure the undrained shear strength. Without it, the risk of a face collapse or excessive surface settlement is too high. The team on site starts with continuous soil sampling and standard penetration tests, following ASTM D1586, to capture every layer shift.
Face stability in Birmingham's soft soils depends entirely on the undrained shear strength of the alluvial clays.
Methodology and scope
In Birmingham, we see that the residual soils from the Paleozoic limestones and shales create a complex profile. The upper 20 to 40 feet are often alluvial terrace deposits, with low SPT blow counts (N-values of 3 to 8) and high moisture content. Deeper, the weathered bedrock transitions into a harder stratum. A proper analysis must include triaxial testing (UU and CU) to define the undrained shear strength for short-term tunnel stability, and consolidation tests to predict long-term settlements. We combine this with field permeability testing to estimate groundwater inflow rates. The results feed directly into the tunnel lining design and the selection of excavation methods. The key parameters we track include the modulus of elasticity and the coefficient of consolidation, both critical for predicting ground behavior during excavation.

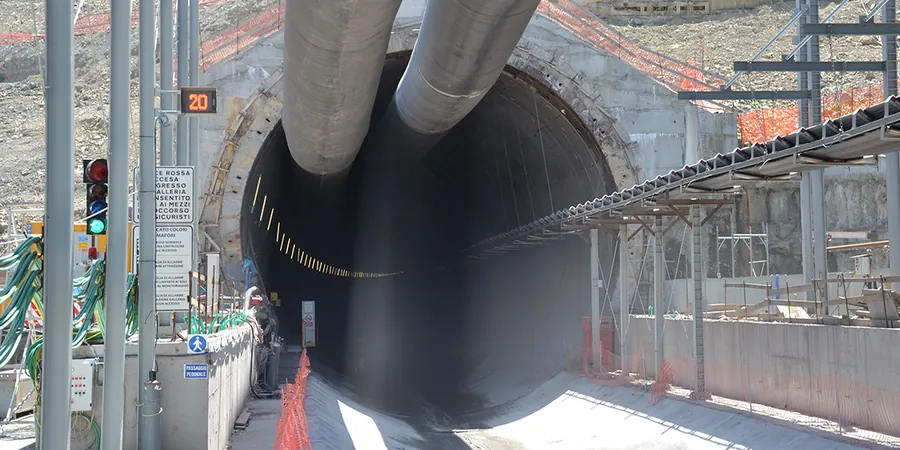

Technical reference image — Birmingham Alabama
Local considerations
Consider a 10-foot-diameter sewer tunnel being driven under a major Birmingham thoroughfare like University Boulevard. The contractor uses an earth pressure balance machine. The ground is a soft, saturated clay with a thin sand lens. If the geotechnical analysis for soft soil tunnels misses that sand lens, the machine could lose face pressure. The result: a sudden inflow of soil and water, a surface sinkhole, and a road closure lasting weeks. The Birmingham area is also prone to groundwater fluctuations from the karstic limestone beneath. These fluctuations can alter effective stresses, leading to unexpected ground movements. The risk is not just to the tunnel but to adjacent buildings and utilities. A comprehensive analysis must include pore pressure monitoring and a detailed assessment of the soil's stress history.
We perform CU and UU triaxial tests on undisturbed tube samples from the project site. The results define the stress-strain behavior and pore pressure response under tunnel loading conditions.
02
In-Situ Vane Shear & Piezocone Testing
Field vane shear tests provide a direct measure of undrained shear strength in soft clays. Piezocone (CPTu) soundings give continuous profiles of soil type, strength, and pore pressure, critical for tunnel face stability analysis.
What is the typical cost range for a geotechnical analysis for soft soil tunnels in Birmingham?
The typical cost for a comprehensive geotechnical analysis for a soft soil tunnel project in Birmingham ranges from US$4,090 to US$15,360. This depends on the number of boreholes, laboratory tests, and the complexity of the soil profile.
How deep should boreholes be for a soft soil tunnel analysis in Birmingham?
Boreholes should extend to at least two tunnel diameters below the proposed invert, or until encountering competent bedrock or dense soil. In Birmingham's alluvial valleys, this often means depths of 50 to 80 feet.
What laboratory tests are most critical for soft soil tunnel design?
The most critical tests are the consolidated-undrained (CU) triaxial test for undrained shear strength, the one-dimensional consolidation test for settlement predictions, and the Atterberg limits for soil classification and plasticity assessment.
How do I know if my tunnel project requires a geotechnical analysis?
Any tunnel project in soft ground, regardless of size, requires a geotechnical analysis to ensure stability. This includes sewer, water, and road tunnels. Birmingham's variable soils make it mandatory for safe design and construction.
What is the difference between SPT N-values and undrained shear strength for tunnel design?
SPT N-values provide a quick index of soil density and are used for preliminary correlations. Undrained shear strength (Su) from triaxial tests is the direct parameter for face stability and lining load calculations. Both are used together for a complete analysis.
