Birmingham grew fast after the Civil War, its iron-and-steel boom pulling factories and rail yards onto valley floors and hillsides alike. That rapid urbanization happened without the kind of subsurface understanding we rely on now. Today, when we walk a site in the Jones Valley or up toward Red Mountain, we see fills, cut slopes, and weathered rock that demand careful seismic foundation design. The Piedmont geology here — deep saprolite over crystalline bedrock — means shear-wave velocity can jump sharply within a few meters, and that contrast drives the ground response. Before we size a footing or specify a mat, we run a MASW survey to map those velocity layers directly. That field data feeds the site-class assignment under ASCE 7-22, which then dictates the design spectrum. Getting that classification right in Birmingham Alabama is the single most important step for any structure expected to survive a moderate earthquake.
A VS30 survey in Piedmont residual soils can change the site class from C to B, cutting the design base shear by 30 percent.
Methodology and scope
Birmingham sits at roughly 200 meters above sea level, but the local relief is deceptive — ridges like Shades Mountain rise 150 meters above the Cahaba Valley floor. That topography creates significant variability in the depth to rock, and consequently in the seismic site class. Over the past two decades, we have correlated more than 300 VS30 profiles across Jefferson County to understand how the residual soil profile affects the amplification factor. Our typical approach combines active-source MASW with passive microtremor arrays to reach depths of 30 to 60 meters. When the site conditions include soft alluvial deposits near Village Creek, we also integrate a CPT-based liquefaction assessment to evaluate cyclic resistance. The resulting seismic foundation design for Birmingham Alabama projects accounts for both the strength limit state and the serviceability limit state under the IBC 2024 provisions. Parameters we deliver include the design response spectrum, expected peak ground acceleration, and the site coefficient Fa and Fv. Every report is reviewed by a licensed geotechnical engineer and backed by our ISO 17025 accredited laboratory for index and strength testing.

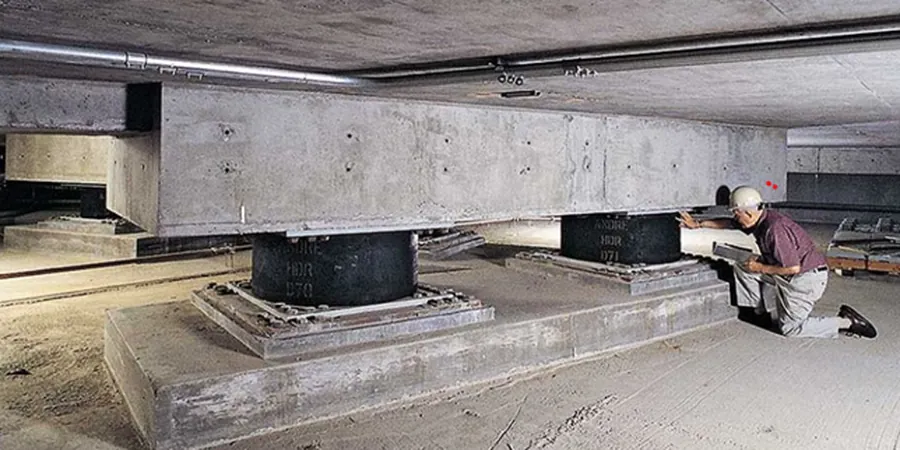

Technical reference image — Birmingham Alabama
Local considerations
A mid-rise apartment building we consulted on near the University of Alabama at Birmingham had a lovely two-story parking garage underneath, carved into a hillside. The geotechnical report from the 1980s had classified the site as rock — no seismic considerations. When the owner wanted to add three more stories, we drilled and found 10 meters of weathered schist above competent gneiss. That profile, unaccounted for in the original design, could amplify ground motion by nearly 40 percent relative to a rock outcrop. The cost to retrofit the existing foundation for seismic foundation design compliance was almost double what a proper initial study would have added. In Birmingham Alabama, the seismic hazard is low but not negligible; the 1916 earthquake (magnitude 5.1) near the city center was a reminder that the Eastern Tennessee Seismic Zone can produce moderate events. Ignoring the site-specific amplification is the risk that keeps us awake.
Combines MASW, HVSR microtremor, and refraction tomography to define the shear-wave velocity profile. We compute the design spectrum per ASCE 7-22 using both the general procedure (Chapter 21) and the site-specific procedure (Chapter 21) when the profile requires period-dependent amplification. Deliverables include the Fa/Fv coefficients and the spectral acceleration at 0.2s and 1.0s.
02
Liquefaction Hazard Evaluation
For sites underlain by loose sands or silty fills — common along the old railroad corridors in downtown Birmingham — we run SPT borings and CPT soundings to assess cyclic resistance ratio (CRR). The analysis follows the NCEER/Youd-Idriss methodology (2001) and yields a factor of safety against liquefaction for the design earthquake. We also map the post-liquefaction settlement and lateral displacement potential.
Applicable standards
ASCE 7-22: Minimum Design Loads (Chapter 20 – Site Classification), ASTM D4428/D4428M: Standard Test Methods for Crosshole Seismic Testing, IBC 2024: International Building Code (Section 1613 – Seismic Design)
Frequently asked questions
How much does a seismic foundation design study cost in Birmingham?
For a typical commercial project, the full study — including field VS30 survey, liquefaction screening, and a site-specific response spectrum report — runs between US$1.170 and US$4.140. The range depends on the number of borings, the geophysical methods used, and whether the site requires deeper profiling due to thick saprolite. We provide a fixed price after a brief site walk.
Is seismic design required for all buildings in Birmingham Alabama?
Not all, but most. The IBC 2024 triggers seismic design for Risk Category II structures when Ss exceeds 0.167g. In Jefferson County, Ss for the 2% in 50-year event is around 0.10–0.15g, so many low-rise buildings fall below the threshold. However, Risk Category III and IV buildings (schools, hospitals, emergency facilities) always require a site-specific ground motion analysis regardless of Ss value.
What is the difference between a general soil report and a seismic foundation design?
A general soil report provides bearing capacity, settlement estimates, and groundwater conditions. A seismic foundation design adds the dynamic response: site class determination via VS30, calculation of the design response spectrum, liquefaction potential, and often the need for deep foundations or ground improvement to resist cyclic loading. The two are complementary — you need the first to do the second properly.
Which areas of Birmingham have the highest seismic risk?
The highest amplification potential occurs in the alluvial valleys — along Village Creek, the Cahaba River floodplain, and the old industrial fill areas near the CSX rail yards. These soft soil profiles (Site Class D or sometimes E) can amplify ground motion by a factor of 1.5 to 2.0 relative to the adjacent rock slopes. In contrast, the ridgetops underlain by Paleozoic limestone or quartzite typically class as Site Class B and see minimal amplification.
