Birmingham Alabama sits on the folded Appalachian Plateau, where limestone, dolomite, and sandstone form the bedrock under a mantle of clay-rich residual soils. That mix creates sharp velocity contrasts that matter for shear wave velocity profiling. The humid subtropical climate here accelerates chemical weathering, producing deep saprolite zones that can soften the Vs profile significantly. MASW (Multichannel Analysis of Surface Waves) captures those variations without drilling. It delivers a continuous 1-D or 2-D shear wave velocity model from the surface down to 30 meters or more. We use that data to assign NEHRP site class under ASCE 7-22. For projects on the valley floor near Village Creek or in cut-and-fill subdivisions along Red Mountain, a reliable VS30 value is the first step before any structural design begins. Complementing MASW with cimentaciones sísmicas analysis helps engineers match foundation type to the actual ground motion amplification expected at the site.
MASW delivers a continuous shear wave velocity profile from surface to 30+ meters, critical for NEHRP site class assignment under ASCE 7-22.
Methodology and scope
What sets MASW apart in Birmingham Alabama is its performance on sites where conventional borings struggle. The clay-rich Piedmont residuum often masks stiff layers below, but surface waves penetrate those clays cleanly. We deploy a 24-channel landstreamer with 4.5 Hz geophones spaced at 2 meters, generating a 46-meter spread. That setup resolves Vs profiles down to 25–35 meters depth, enough for most IBC structures. The data inversion uses a genetic algorithm approach to minimize misfit between observed and modeled dispersion curves. In our experience, the biggest variable here is the depth to competent rock — it can vary from 3 meters on the ridges to over 20 meters in the Cahaba Valley. For deep fills or soft zones, we cross-check results with ensayo CPT to confirm stratigraphy where the Vs inversion shows ambiguity. The entire field campaign usually takes half a day.

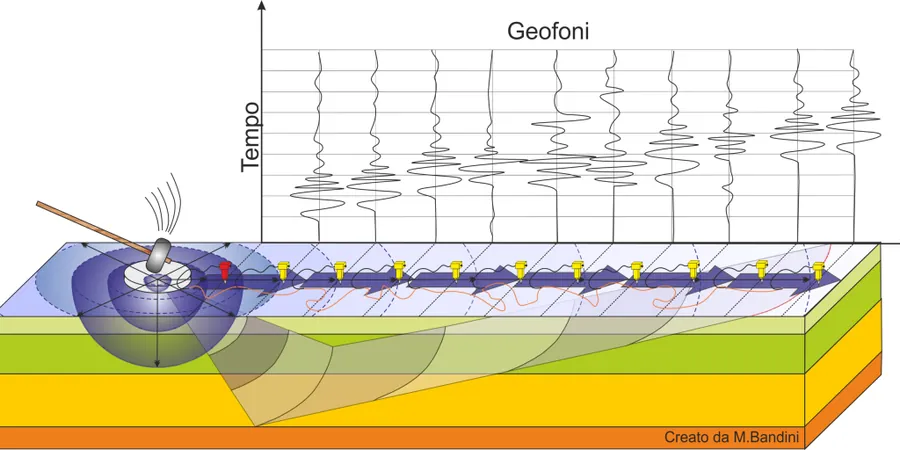

Technical reference image — Birmingham Alabama
Local considerations
The most overlooked risk in Birmingham Alabama is the presence of karst features in the underlying Ketona Dolomite. MASW can detect velocity inversions that indicate solution cavities or filled sinkholes — but only if the survey line crosses them. A single line may miss a localized void. We recommend at least two perpendicular profiles per building footprint. Another risk: the clay-rich residual soils above the rock can have Vs values in the 180–350 m/s range, placing many sites in NEHRP class C or D. That classification triggers stricter seismic design per IBC. Without measured Vs30, engineers default to site class D or even E, increasing foundation costs unnecessarily. The savings from measured Vs30 often exceed the survey cost by a factor of 3 to 5.
Full 2-D shear wave velocity survey using 24-channel landstreamer. Deliverable includes dispersion curve, inverted Vs profile, and NEHRP site class per ASCE 7-22. Suitable for commercial buildings, schools, and critical facilities.
02
ReMi (Refraction Microtremor) for Urban Sites
Passive surface-wave method that uses ambient noise instead of an active source. Ideal for tight urban lots in downtown Birmingham where active MASW is impractical. Same Vs30 output with lower logistical footprint.
Applicable standards
ASTM D4428/D4428M-14 (MASW standard), ASCE 7-22 (NEHRP site class definition), IBC 2021 (seismic design provisions)
Frequently asked questions
How much does MASW / VS30 testing cost in Birmingham Alabama?
The typical price range for a MASW survey with VS30 determination in Birmingham Alabama is between US$1,700 and US$3,280, depending on site access, number of profiles, and depth required. Volume discounts apply for multi-building developments.
What NEHRP site class is most common in Birmingham Alabama?
Based on our data from over 50 surveys across the metro area, site class C (360–760 m/s) dominates the ridges and hillsides underlain by sandstone and limestone. Site class D (180–360 m/s) is common in the Cahaba Valley floodplain and areas with deep residual clay. Site class B is rare, found only where competent dolomite is within 5 meters of the surface.
Can MASW detect sinkholes or voids in Birmingham Alabama?
Yes, but with limitations. MASW identifies velocity inversions — zones where Vs drops sharply compared to surrounding layers — which often correlate with air-filled cavities or soft infill. However, the method's resolution is about 3–5 meters laterally. For detailed void mapping, we recommend combining MASW with microgravity or ground-penetrating radar. The Ketona Dolomite formation beneath eastern Birmingham is particularly prone to solution features.
How does MASW compare to a traditional borehole for Vs30?
MASW provides a continuous 1-D or 2-D velocity profile without drilling, covering a larger volume of ground than a single borehole. A downhole seismic test in a borehole gives point-specific Vs at discrete depths, but can miss lateral variability. MASW is faster and cheaper — typically 60% less than a cored borehole with downhole logging. For site class determination under ASCE 7, either method is acceptable, but MASW's spatial coverage reduces the risk of missing a soft lens that could amplify ground motion.
