Birmingham Alabama grew rapidly after the Civil War as an industrial hub, with rail lines and furnaces shaping its urban layout across the ridges and valleys of the Appalachian foothills. This topography means that many building sites sit on residual soils derived from weathered bedrock, often with high plasticity clays that are prone to volume change. For projects requiring deeper stabilization, deep soil mixing design in Birmingham Alabama offers a reliable way to treat these problematic strata in situ. The method combines cementitious binders with the native soil to form columns or panels of improved ground. Before specifying a DSM program, we typically run a [MASW survey](/masw-vs30/) to map stiffness variations across the site, which refines both the mixing depth and binder dosage.
In Piedmont soils with high plasticity clays, DSM columns must be designed for both strength and stiffness, not just bearing capacity.
Methodology and scope
From a practical standpoint, we often see that the biggest variable in DSM work here is the heterogeneous nature of the Piedmont residuum. One borehole might show stiff clay, while the next hits soft saprolite. That variability demands a design approach that adapts column spacing and strength targets in real time. Our deep soil mixing design in Birmingham Alabama follows the ASTM D1586-18 standard for preliminary SPT sampling to classify each soil layer, then we correlate those results with targeted unconfined compressive strength values for the treated columns. We also use compression simple tests on wet-grab samples during mixing trials to verify that the binder achieves the required 28-day strength. The process ensures that treatment zones match the actual ground conditions, not a simplified model.

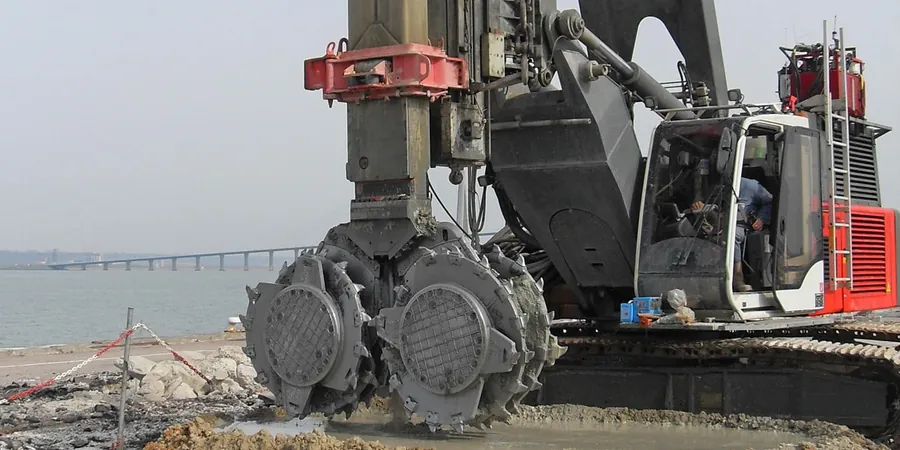

Technical reference image — Birmingham Alabama
Local considerations
The shallow ground in Birmingham Alabama often contains solution features in the underlying Paleozoic limestone, especially near the Red Mountain ridge. These voids can collapse under load if not detected during the geotechnical investigation. Deep soil mixing design in Birmingham Alabama addresses this risk by filling or bridging karst cavities with treated soil, but only if the DSM layout is adjusted based on pre-construction probing. We recommend a grid of CPT or SPT holes at 5 m centers within the treatment zone to locate any hidden voids. Without that step, a column installed directly over a cavity may yield no improvement at all.
SPT borings and soil classification to define the stratigraphy and locate potential karst features before any mixing work begins.
02
Mix Design and Laboratory Trials
Wet-grab samples are prepared with varying binder contents and tested at 7, 14, and 28 days to determine the optimum dosage for the target strength.
03
Column Layout and Verification
We calculate area replacement ratios and column spacing based on bearing capacity and settlement criteria, then verify installed columns with coring or PDA testing.
04
Construction Monitoring
On-site supervision of auger penetration rates, binder injection pressure, and mixing energy to ensure the design intent is achieved in the field.
Applicable standards
ASTM D1586-18 (Standard Test Method for SPT and Soil Sampling), ASTM D1633-17 (Standard Test Methods for Compressive Strength of Molded Soil-Cement Cylinders), IBC 2021 Chapter 18 (Soils and Foundations), ASCE/SEI 7-22 (Minimum Design Loads for Buildings)
Frequently asked questions
What makes deep soil mixing design in Birmingham Alabama different from other regions?
The Piedmont residual clays here are highly plastic and often underlain by karstic limestone. DSM design must account for both the shrink-swell potential of the clay and the risk of void collapse. Standard binder dosages from other regions may not be adequate without local trial mixes.
How deep can DSM columns realistically reach in Birmingham Alabama?
With single-axis auger equipment common in the area, maximum depth is around 25 m. Deeper treatments require multi-axis rigs or pre-drilling, which increases cost. For most commercial projects here, 10-18 m is typical.
What is the typical cost range for a DSM design and verification program?
The cost of a full DSM design package, including site investigation, mix design trials, and column verification, typically ranges from US$1.900 to US$6.530 depending on the number of trial mixes and the depth of treatment. Volumetric rates for production mixing are quoted separately by the contractor.
Can DSM be used to remediate existing foundations in Birmingham Alabama?
Yes, DSM is often applied as a retrofitting measure for settled slabs or leaning walls. The columns are installed through the existing foundation using a small-diameter auger, then the structure is jacked or leveled after the treated soil gains strength. This avoids the cost of full underpinning.
