Birmingham Alabama sits at 600 feet above sea level and receives over 55 inches of rain annually, which means our soils stay wet for long periods. That moisture drives a lot of foundation and slope problems we see daily. Geocell design in Birmingham Alabama addresses exactly those issues by confining granular fill and distributing loads over weak subgrades. The technique works well on the red clay and residual sand that dominate the Ridge and Valley province here. Before we commit to a geocell layout, we always pair it with a geotechnical study to map soil variability and a plate load test to confirm subgrade modulus at the proposed depth.
Geocell design in Birmingham Alabama reduces fill thickness by 40% compared to unreinforced sections while cutting differential settlement on wet subgrades.
Methodology and scope
A typical project on a 4-acre commercial site near I-65 required a geocell system to support a parking lot over 8 feet of soft clay. We designed a 6-inch geocell section filled with No. 57 stone, placed over a nonwoven separation fabric. The key parameters we controlled were:
Cell height between 4 and 8 inches depending on traffic class
Fill material angularity and compaction to 95% standard Proctor
Seam strength and UV resistance for exposed surfaces
We also verified the design using the FHWA's modified bearing capacity method and cross-checked it against local deflection criteria. For projects with steep side slopes, we add a slope stability analysis to ensure the geocell mass resists sliding and overturning under saturated conditions.

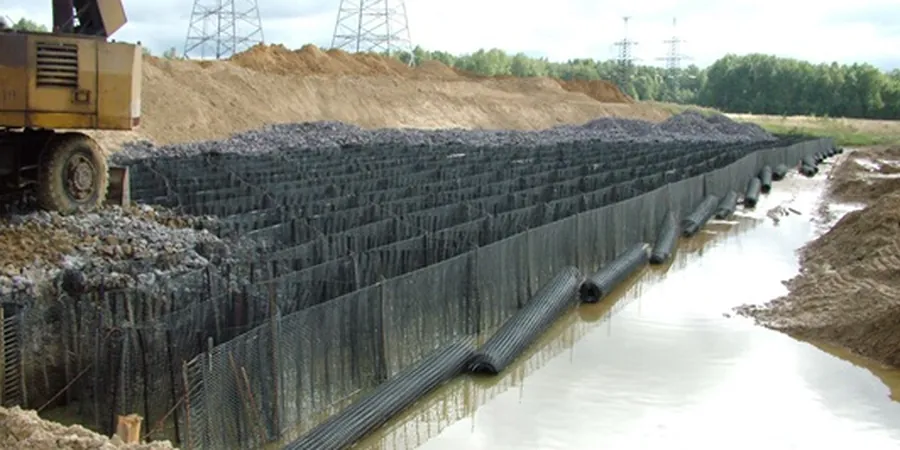

Technical reference image — Birmingham Alabama
Local considerations
The dominant soil in Birmingham Alabama is the Ola series, a deep red clay that shrinks and swells with every rain cycle. That movement alone can crack a pavement or tilt a retaining wall within two years if the subgrade is not properly confined. Geocell design in Birmingham Alabama mitigates that risk by locking the fill in three dimensions, preventing lateral spread even under repeated wet-dry cycles. We have seen untreated sections lose 50% of their bearing capacity after three heavy rain events; a geocell system holds that loss to under 15%. That is a critical margin when you are designing for a fire lane or a truck apron.
We size the geocell section based on traffic volume, subgrade CBR, and fill quality. The design includes a separation layer, drainage check, and compaction specification. Typical sections range from 4 to 8 inches and handle up to 10,000 ESALs.
02
Slope and channel protection
On steeper slopes (2:1 or greater), we design geocell-reinforced soil veneers to resist erosion and shallow sliding. We specify infill material, anchor trench details, and vegetation requirements for long-term stability.
03
Subgrade improvement for shallow foundations
When a spread footing bears on soft clay, we design a geocell-reinforced load transfer platform that distributes the footing pressure over a wider area, reducing settlement by 30 to 50 percent compared to unreinforced granular fill.
What is the typical cost range for geocell design in Birmingham Alabama?
A complete geocell design package, including site evaluation, section sizing, and construction drawings, ranges between US$810 and US$2,680 depending on project size and complexity. Volume discounts apply for multi-acre sites.
How deep does the geocell need to be for a fire lane?
For a fire lane carrying 80,000-pound trucks over a subgrade CBR of 2.0, we typically specify a 6-inch geocell section filled with No. 57 stone. The design follows the FHWA's modified CBR method and includes a 12-inch minimum aggregate base below the geocell in very soft conditions.
Can geocells be used on slopes steeper than 2:1 in Birmingham Alabama?
Yes, but we require a slope stability analysis to confirm the reinforced mass resists sliding and deep-seated failure. On slopes steeper than 1.5:1, we add a geogrid anchor at the toe and specify a vegetated infill to control surface erosion during heavy rain.
What fill material works best with geocells on clay subgrades?
Angular crushed stone, typically No. 57 or No. 67 gradation, provides the best interlock and drainage. Rounded gravel or sand should be avoided because they do not lock into the cell walls, reducing the confinement effect by up to 40 percent.
