Heavy late-summer thunderstorms dump over 55 inches of rain annually across Jefferson County, and the Piedmont foothills around Birmingham Alabama retain that moisture in a way that surprises many developers. Clay-rich residual soils derived from weathered shale and limestone undergo dramatic volume changes when they wet up. That cyclic shrink-swell behavior cracks slabs, lifts pavements, and distorts light foundations. A thorough expansive soil evaluation in Birmingham Alabama begins with index testing to classify plasticity and then moves to one-dimensional swell tests under representative surcharge loads. The goal is simple: quantify the heave potential before you pour concrete. For deeper profiles we often combine this assessment with a MASW vs30 survey to map stiffness contrasts in the subgrade, and with calicatas exploratorias to verify soil stratification at shallow depths.
A PI above 30 combined with natural moisture below the plastic limit means the soil is already dry and will heave when wetted — that is the trigger condition.
Methodology and scope
A common mistake local contractors make is assuming that a high-plasticity clay found in one lot will behave exactly like the soil two blocks away. Birmingham Alabama sits on a patchwork of geological formations — the Red Mountain Formation, the Parkwood Formation, and the Pottsville Formation all appear within a few miles. Each produces clays with distinct mineralogy and swell potential. Our evaluation protocol follows ASTM D4318 for Atterberg limits and ASTM D4546 for one-dimensional swell pressure. When PI exceeds 30 and the natural moisture content falls below the plastic limit, we flag the site as high-risk. We also run free-swell tests on undisturbed ring samples to measure heave directly. In areas near Valley Creek or Shades Creek, where alluvial clays interlayer with colluvium, we recommend complementary suelos residuales profiling to separate transported from residual materials.

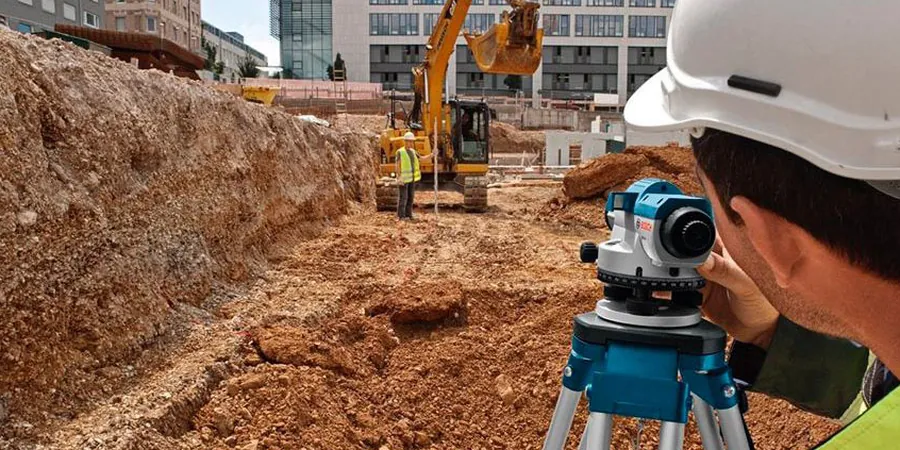

Technical reference image — Birmingham Alabama
Local considerations
Birmingham Alabama sits at roughly 600 feet above sea level, but its hilly terrain creates natural drainage basins where clay accumulates. Over 300,000 people live in the metro area, and many subdivisions from the 1970s were built without testing for expansive soils. The result: thousands of homes now show diagonal cracking in brick veneer, uneven garage slabs, and doors that stick seasonally. A proper expansive soil evaluation in Birmingham Alabama identifies the depth of active zone — typically 6 to 12 feet — so that foundations can be designed below it or the soil can be treated with lime stabilization. Ignoring this step means repairs that cost 10 to 20 times the price of the original investigation.
Liquid limit, plastic limit, and plasticity index measured per ASTM D4318. Results are correlated with the USCS system to identify high-swell clays (CH, MH) and to calculate shrinkage index.
02
One-Dimensional Swell Test
Undisturbed ring samples are loaded incrementally in an oedometer to measure vertical swell strain under simulated overburden pressure. Free swell and swell pressure are reported per ASTM D4546 Method B.
03
Lime Stabilization Design
Eades & Grim pH test and unconfined compressive strength tests on lime-treated blends determine the optimum lime content to reduce plasticity and swell potential to acceptable levels.
04
Active Zone Depth Profiling
Borehole moisture and suction measurements combined with seasonal monitoring define the depth of seasonal moisture change. This informs footing depth recommendations for residential and light commercial projects.
How much does an expansive soil evaluation cost in Birmingham Alabama?
A standard evaluation with Atterberg limits, one-dimensional swell test, and classification costs between US$540 and US$1,720 depending on the number of samples and the depth of boreholes. Additional swell-pressure tests or lime stabilization design add to the scope.
What PI value triggers a high-swell designation?
Per ASTM D2487 and IBC 2021, a plasticity index above 25 is considered moderately expansive, and above 35 is highly expansive. In Birmingham Alabama, many clays from the Red Mountain Formation exhibit PI values between 35 and 50, which requires special foundation design.
Can expansive soil be mitigated without deep foundations?
Yes. Lime or cement stabilization, moisture control through surface drainage and subgrade membranes, and post-tensioned slab-on-grade are all viable options. The mitigation strategy depends on the swell pressure measured in the evaluation and the depth of the active zone.
How long does the laboratory testing take?
Atterberg limits and classification are completed within 3–5 business days. One-dimensional swell tests require 7–10 days because the sample must equilibrate under water. Full reports including recommendations are typically delivered within two weeks.
